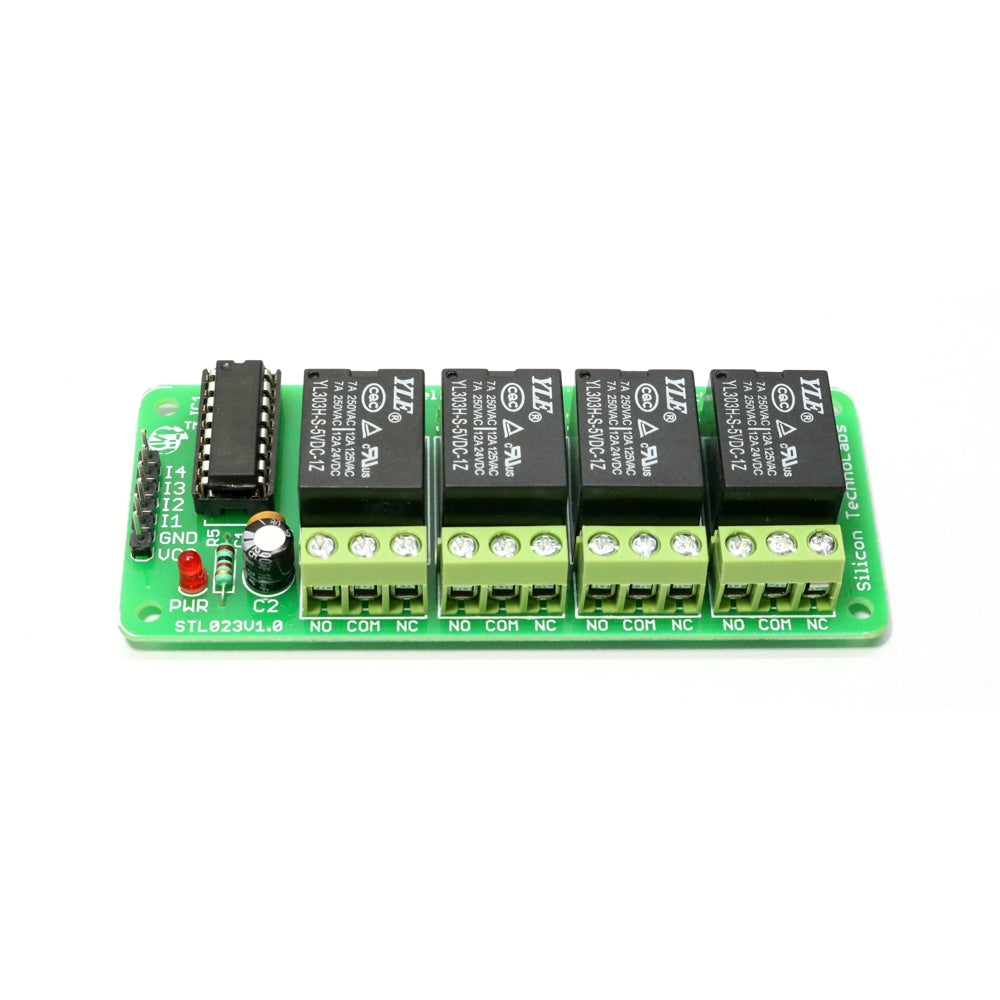

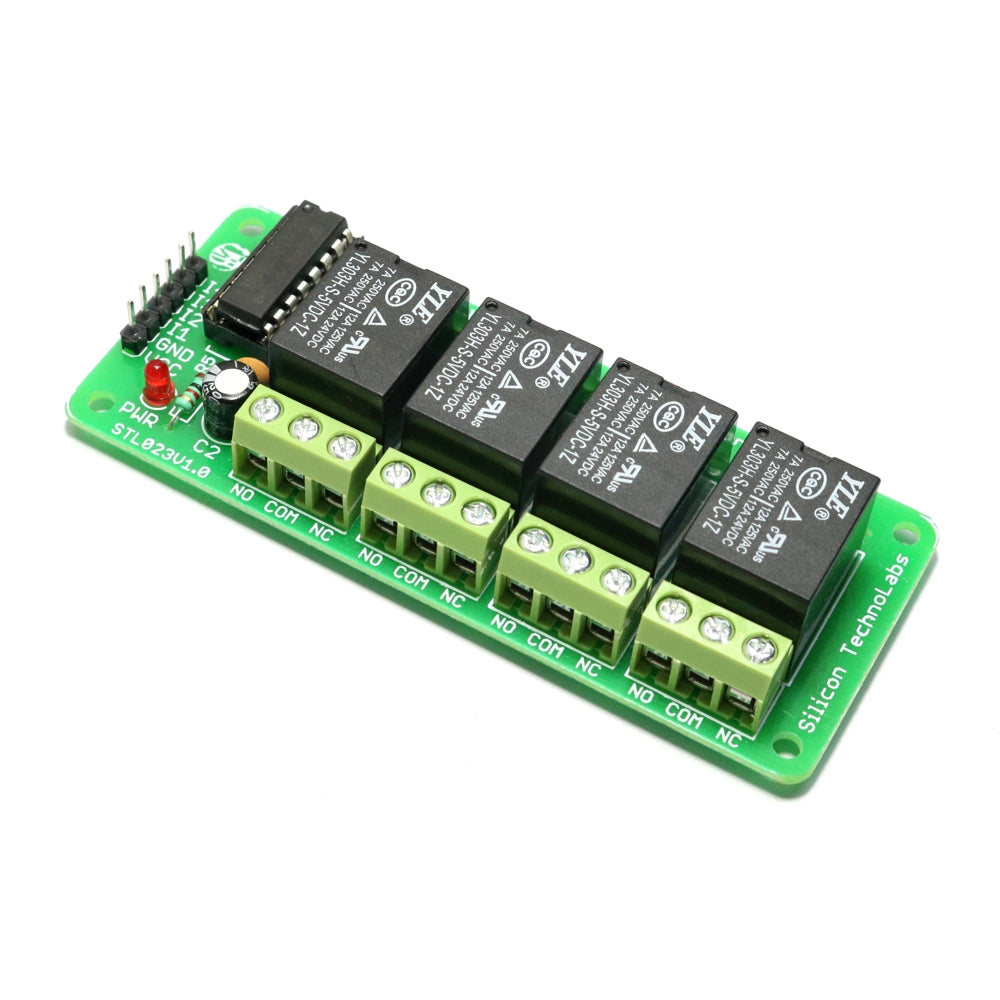

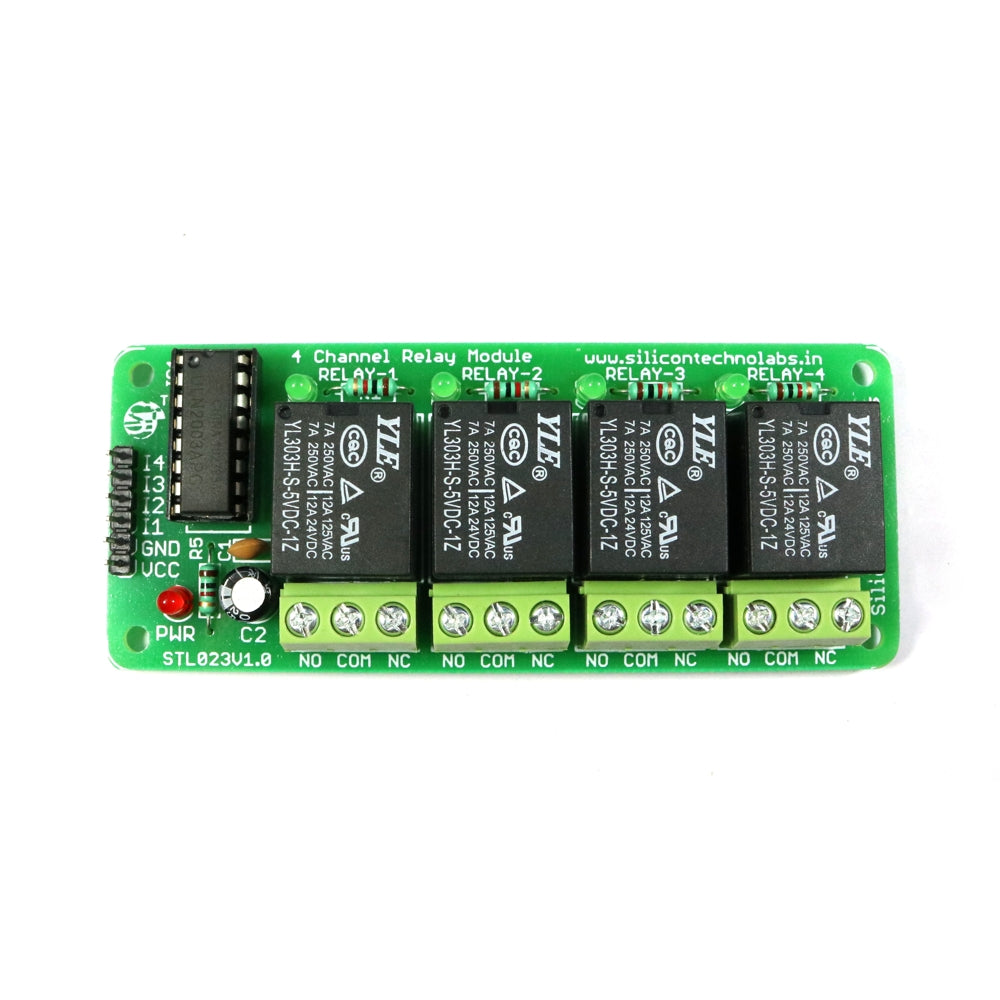

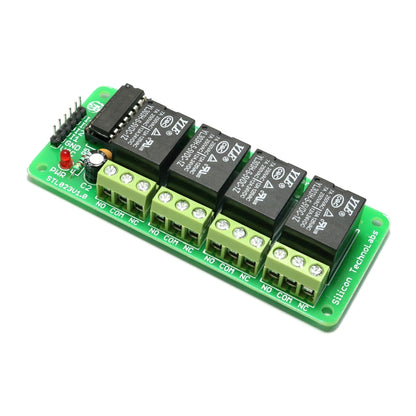

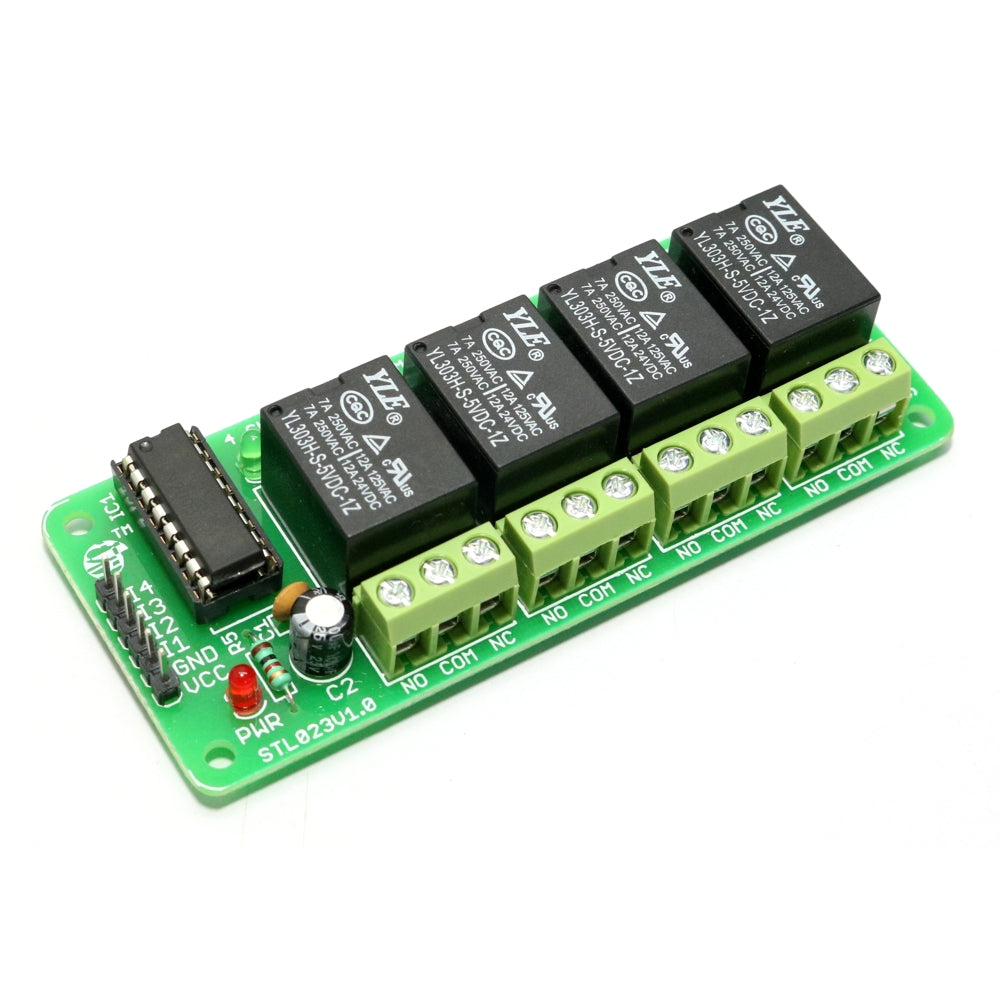

5V Four-Channel Relay Module – Reliable High-Voltage Control with ULN2003
The perfect solution for automating and controlling high-voltage devices with low-voltage signals, now enhanced with the onboard ULN2003 IC for better performance.
Introduction
The 5V Four-Channel Relay Module is a critical component for anyone looking to manage high-power devices with low-power control signals. This module, now equipped with the ULN2003 IC, is designed for versatility, ease of integration, and safety, making it the ideal choice for applications ranging from DIY electronics to industrial automation.
With its robust build, high load capacity, and user-friendly connections such as Burg pins for microcontroller integration and screw terminals for secure load connections, it caters to beginners and professionals alike. Let’s explore its features, specifications, and applications in detail.
Key Features
- Four Independent Relays: Each relay can handle up to 250V AC/7A or 30V DC/10A.
- ULN2003 IC: Integrated driver IC for reliable and efficient relay control, reducing the need for external components.
- Burg Connection: Facilitates easy and reliable integration with Arduino, Raspberry Pi, and other microcontrollers.
- Screw Terminals: Provides stable connections for high-voltage loads, reducing the risk of loose wiring.
- Onboard LEDs: Visual indicators show the status of each relay for real-time feedback.
- Wide Compatibility: Designed to operate at 5V, making it suitable for a variety of platforms and projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 5V |
| Relay Channels | 4 |
| AC Load Capacity | 250V AC, 7A |
| DC Load Capacity | 30V DC, 10A |
| Driver IC | ULN2003 |
| Connection Type | Burg Connector, Screw Terminal |
| LED Indicators | Yes |
Applications
The 5V Four-Channel Relay Module with ULN2003 IC is versatile and can be used across a wide range of applications, including:
- Home Automation: Control lights, fans, and appliances remotely or integrate with smart home systems for advanced automation.
- Industrial Automation: Manage machinery, control systems, and other high-power equipment in factories or industrial setups.
- Robotics: Use it for controlling actuators, motors, and other components in robotics projects.
- Security Systems: Automate alarms, sirens, and cameras for enhanced safety and monitoring.
- DIY Electronics: Integrate the module into Internet of Things (IoT) devices, custom circuits, and other innovative projects.
How to Use the 5V Four-Channel Relay Module
Setting up the module is straightforward. Here’s a step-by-step guide:
- Connect to the Microcontroller: Use the Burg pins to link the relay module to the digital output pins of your microcontroller. The onboard ULN2003 IC simplifies driving the relays.
- Wire the Load: Securely connect the device or appliance you want to control to the screw terminals. Each relay has three terminals: COM (Common), NO (Normally Open), and NC (Normally Closed).
- Program the Microcontroller: Write a program to send HIGH or LOW signals to the relay pins. This will control whether the relay is activated or deactivated.
- Test the Setup: Power the microcontroller and test the relays by toggling the digital pins. The onboard LEDs will indicate the status of each relay.
Tips for Optimal Use
- Use Proper Wiring: Ensure all connections are secure and use wires of appropriate gauge for the load.
- Add a Flyback Diode: Protect the relay from voltage spikes by using a flyback diode when controlling inductive loads like motors or solenoids.
- Avoid Overloading: Do not exceed the relay's specified load ratings to ensure safe and reliable operation.
- Test Thoroughly: Before deploying the module in a live setup, test it in a controlled environment to ensure all connections and programs work correctly.
Frequently Asked Questions
- Can this module be used with a 3.3V microcontroller like ESP32?
- Yes, This can be use for 3.3V microcontroller.
- What type of devices can I control with this module?
- You can control a wide range of devices, including lights, fans, motors, pumps, and other household or industrial appliances.
- Is the module safe for beginners?
- Yes, the module is designed with safety in mind. Features like ULN2003 IC make it beginner-friendly and safe to use.
Package Contents
When you purchase the 5V Four-Channel Relay Module, the package includes:
- 1 x 5V Four-Channel Relay Module with ULN2003 IC
