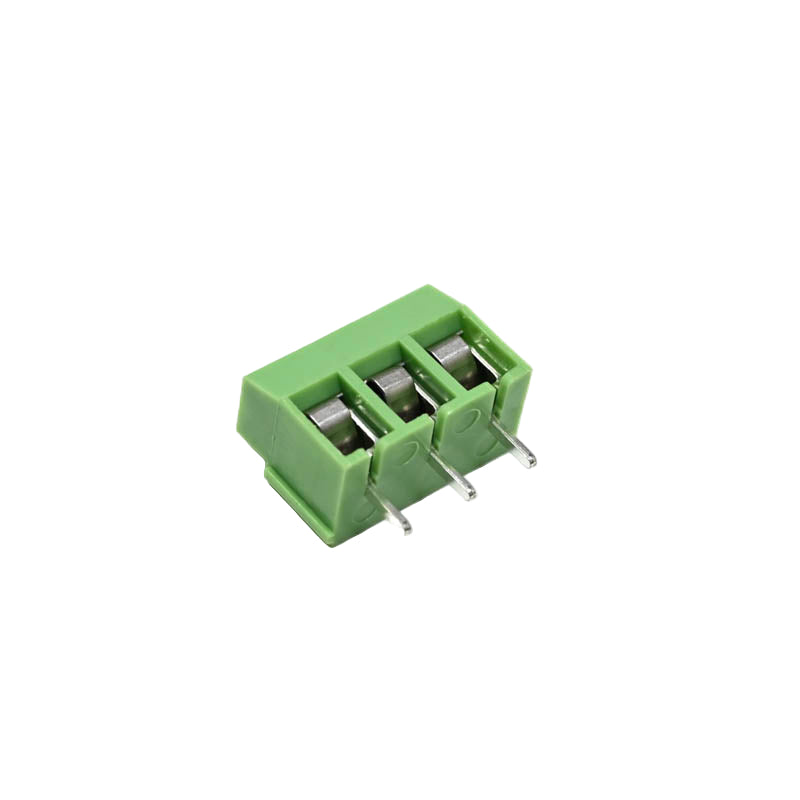

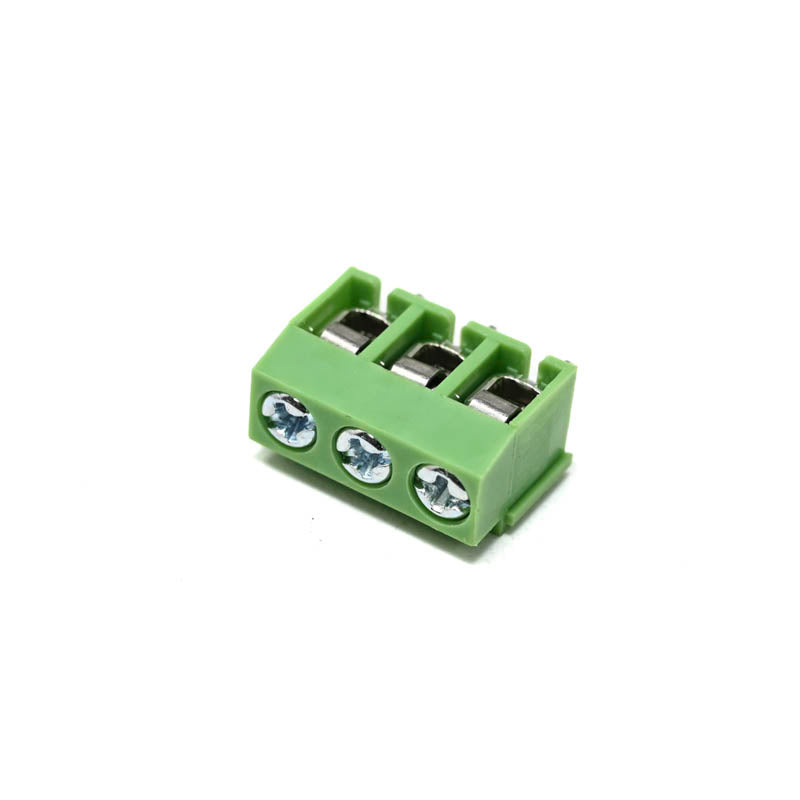

The XY126V-5.0-3P XINLAIYA 3-pin screw terminal block is a reliable and efficient solution for your electrical connection needs. Designed with a 5mm pitch and through-hole mounting, this green terminal block supports up to 10A current and 300V voltage, making it ideal for various PCB and wiring applications. Its robust M2.5 screw terminals accommodate wire gauges from 14 to 26 AWG (2.5 mm²), ensuring secure and stable connections.
This terminal block features a single row of 3 pins, perfectly suited for compact circuit designs requiring reliable connectivity. Manufactured with RoHS-compliant materials, it guarantees environmental safety without compromising performance. Whether you’re working on industrial control systems, automation, or general electronics, the XY126V-5.0-3P terminal block offers durability and ease of installation.
| Parameter | Value |
|---|---|
| Package | Through Hole, P=5mm |
| Number of Pins | 3P |
| Current Rating | 10A |
| Voltage Rating (Max) | 300V |
| Color | Green |
| Wire Gauge - AWG | 14~26 |
| Mounting Type | Through Hole |
| Pitch | 5mm |
| Wire Gauge - mm² | 2.5 |
| File Name | Action |
|---|---|
| XY126V-5.0 Datasheet (PDF) | Download |
