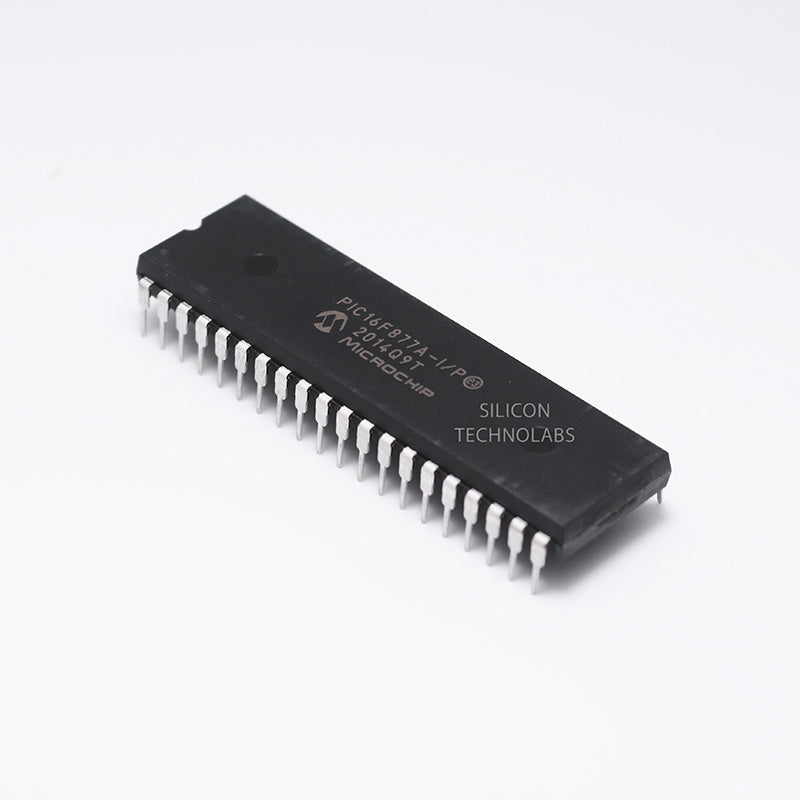

The PIC16F877A-I/P from Microchip Technology is a versatile 8-bit microcontroller designed for robust, cost-effective embedded applications. Built on the PIC16 core.
Ideal for applications such as automation, instrumentation, educational kits, and hobbyist projects. Its rich peripheral set simplifies real-world interfacing and development.
| Parameter | Value |
|---|---|
| Product Category | 8-bit Microcontrollers – MCU |
| Brand | Microchip Technology |
| Core | PIC16 |
| Program Memory Size | 14 kB Flash |
| Data RAM Size | 368 B SRAM |
| Data ROM Size | 256 B EEPROM |
| Package / Case | PDIP-40 |
| Mounting Style | Through-Hole |
| Maximum Clock Frequency | 20 MHz |
| Supply Voltage Min–Max | 4 V – 5.5 V |
| Number of I/Os | 33 I/O |
| ADC Resolution | 10-bit (8 Channels) |
| Number of Timers / Counters | 3 Timers |
| Interfaces | I²C, SPI, USART |
| Data Bus Width | 8-bit |
| Operating Temperature Range | –40 °C to +85 °C |
| RoHS Compliance | Yes |
| Moisture Sensitive | Yes |
| Packaging | Tube |
| Program Memory Type | Flash |
| Series | PIC16(L)F87x |
| Dimensions (L × W × H) | 52.26 mm × 13.84 mm × 3.81 mm |
| Product Type | 8-bit Microcontrollers – MCU |
