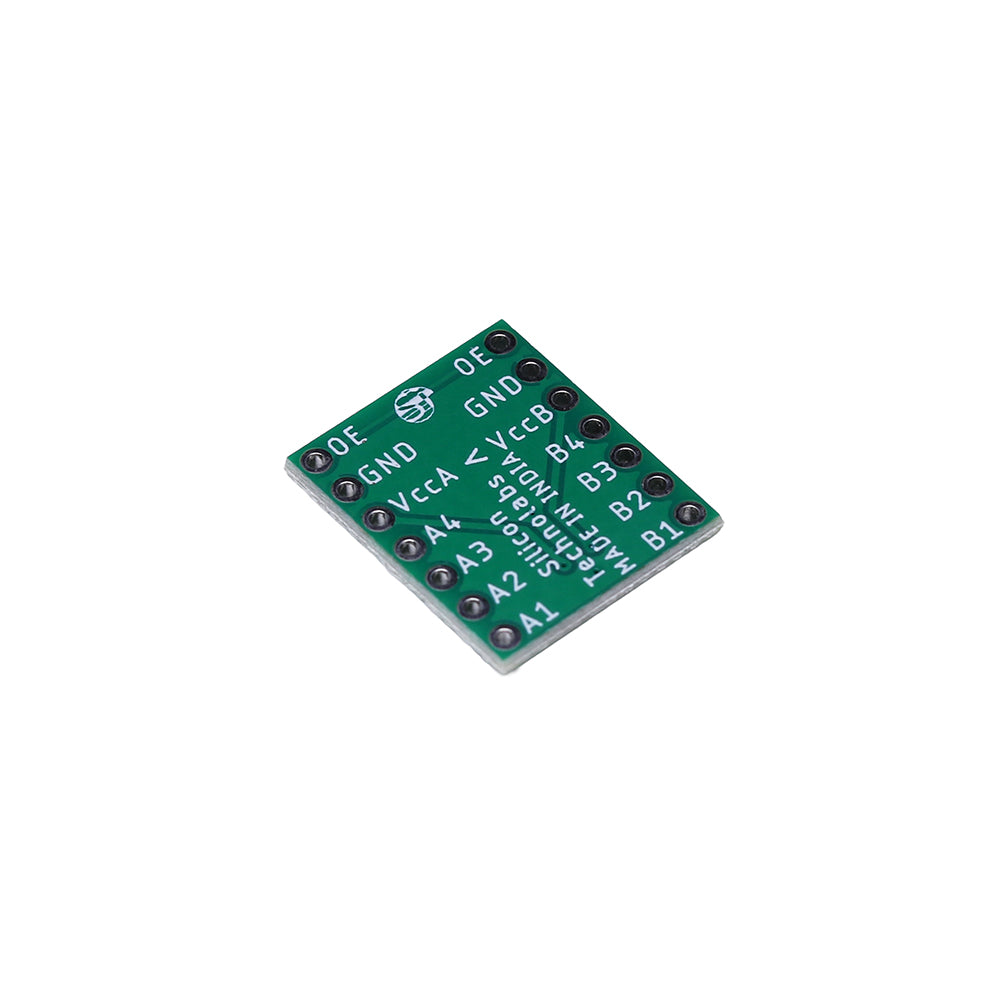

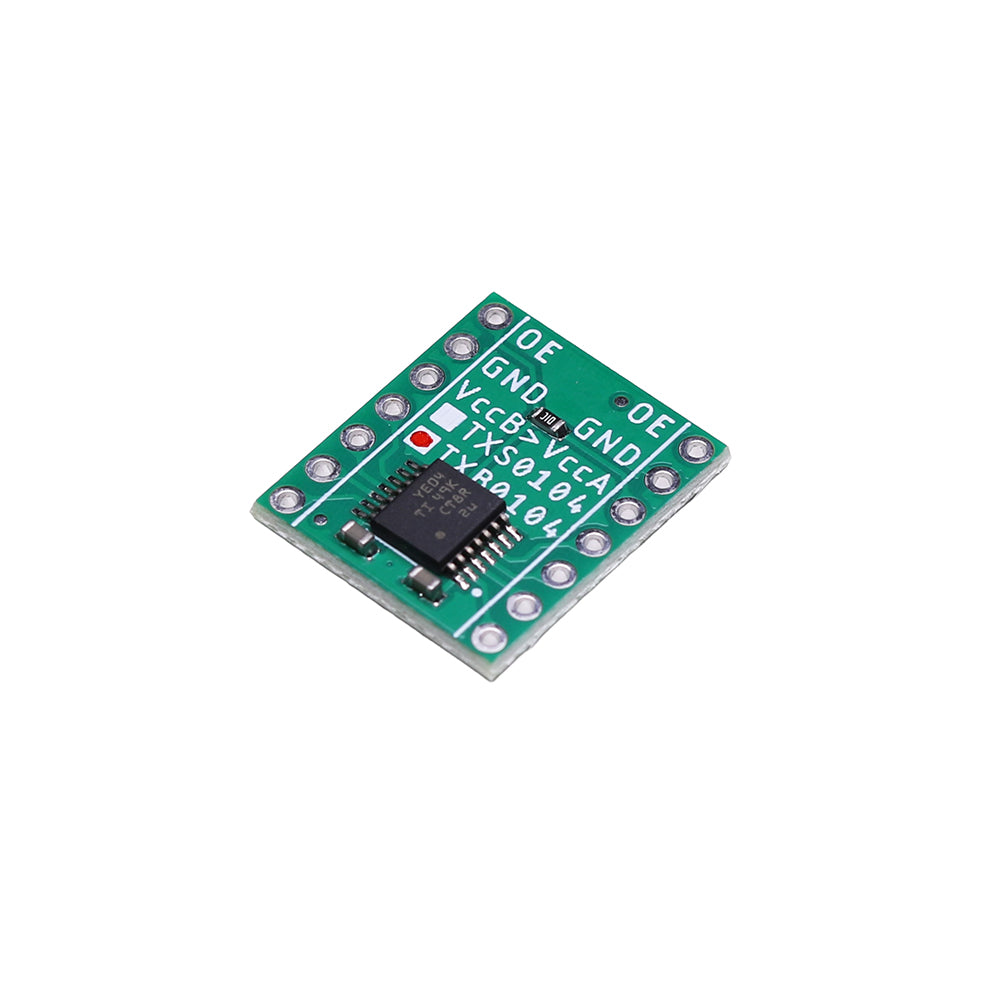

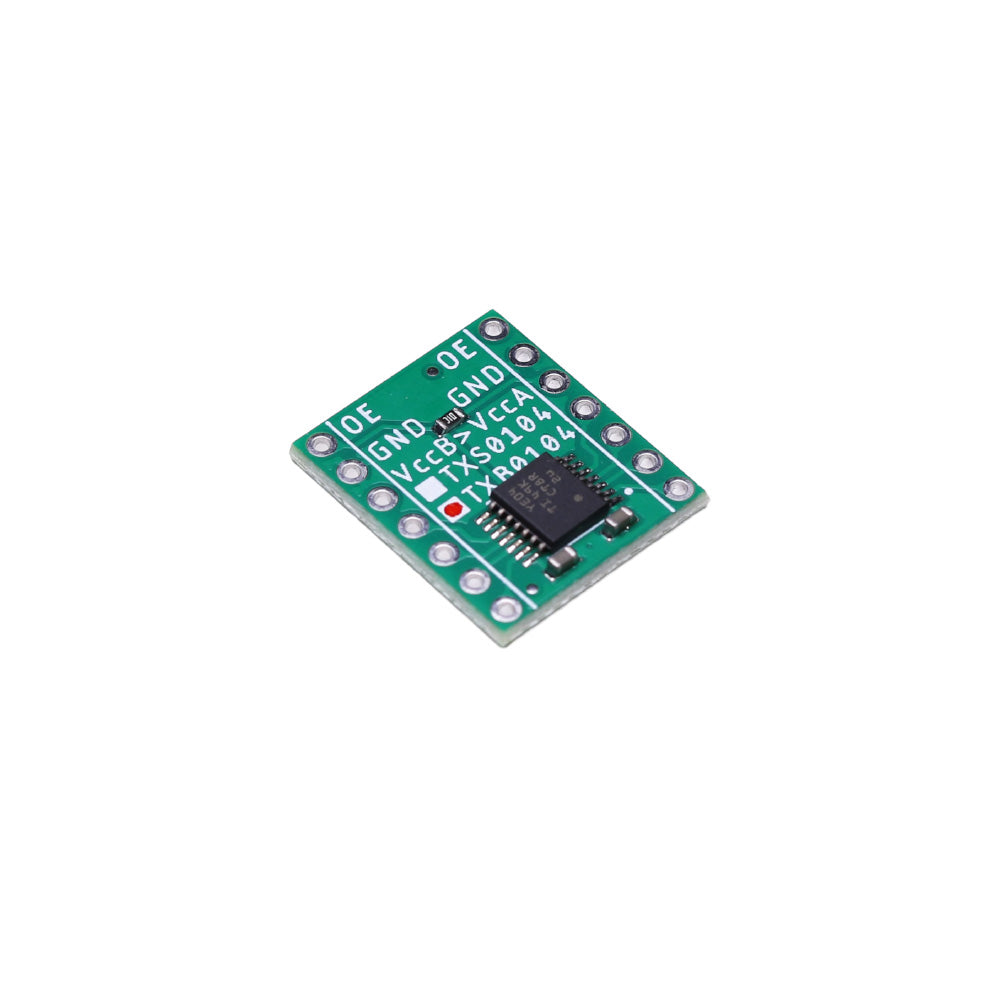

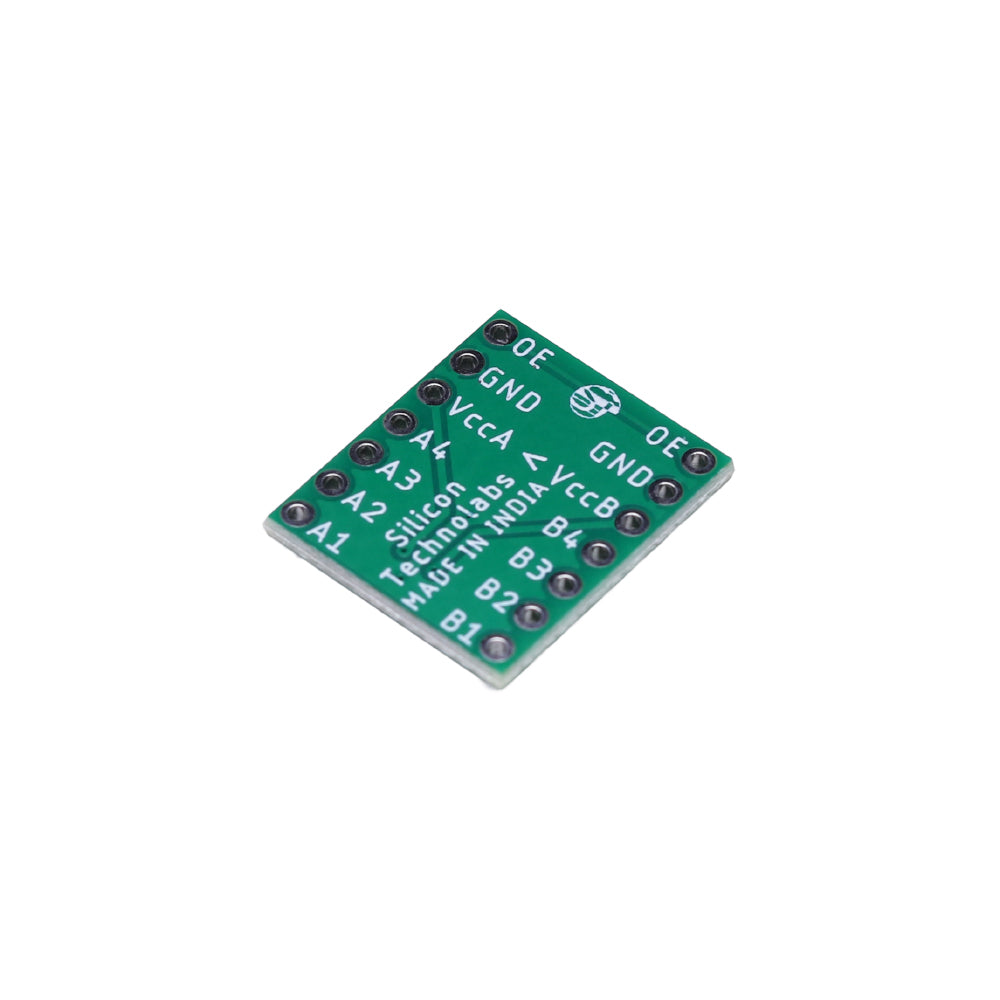

The TXB0104PWR 100Mbps Logic Level Converter Module is a 4-bit, bidirectional voltage-level translator designed for interfacing different logic levels in electronics projects and embedded systems. This module supports high-speed data rates up to 100Mbps, making it suitable for advanced applications including I2C, SPI, UART, and GPIO interfacing.
It features automatic direction sensing and works perfectly with voltage levels from 1.2V to 5.5V, allowing seamless communication between microcontrollers (like Arduino, Raspberry Pi, ESP32) and sensors/modules operating at different voltages.
Features:
- Supports 1.2V, 1.8V, 2.5V, 3.3V, and 5V logic levels
- 4-bit bidirectional automatic direction sensing
- Supports data rates up to 100Mbps
- Compact SMD design
- Ideal for I2C, SPI, UART, GPIO communication
- Low power consumption
Applications:
- Logic level translation between microcontrollers and peripherals
- Embedded systems and IoT development
- Robotics, DIY electronics, and automation projects
| File Name | Action |
|---|---|
| TXB0104-Datasheet | Download |
