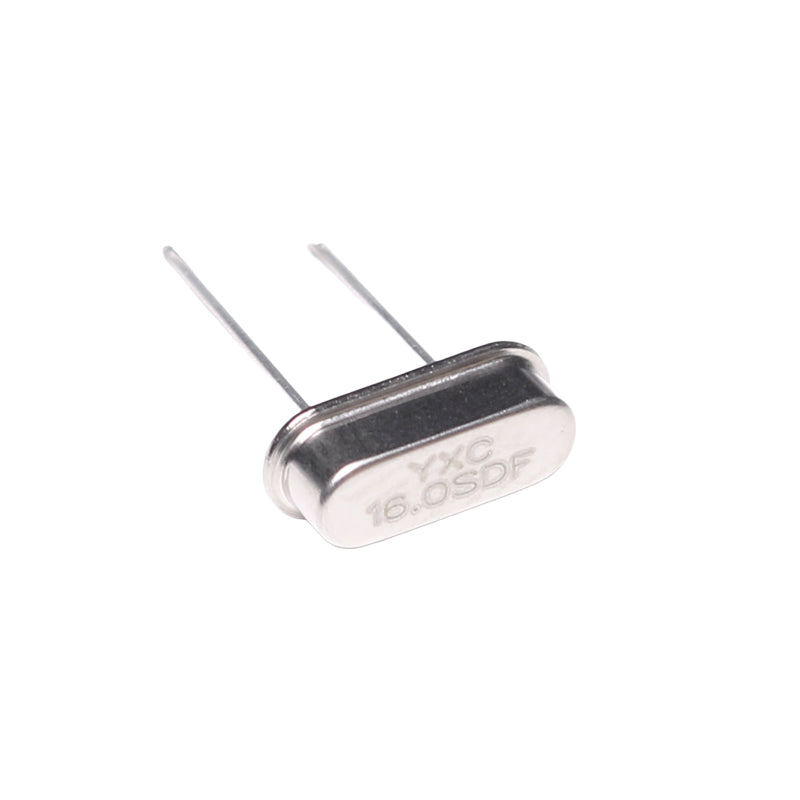

The YXC 16 MHz Through-Hole Crystal Oscillator (HC-49S) offers exceptional frequency stability and reliable performance. Designed with a 20 pF load capacitance and ultra-low frequency tolerance of ±20 ppm (typical) and ±30 ppm (max), this oscillator ensures precise clocking for demanding applications.
Applications: Ideal for AVR, STM, Arduino microcontrollers, timer circuits, serial interfaces, and general-purpose clock generation.
| Parameter | Value |
|---|---|
| Manufacturer | YXC Crystal Oscillators |
| Package | HC-49S |
| Frequency | 16 MHz |
| Type | 2P Through-Hole Crystal Oscillator |
| Load Capacitance | 20 pF |
| Normal Temperature Frequency Tolerance | ±20 ppm |
| Frequency Stability | ±30 ppm |
| Operating Temperature | −20 ℃ ~ +70 ℃ |
| File Name | Action |
|---|---|
| HC-49US Datasheet (PDF) | Download |
