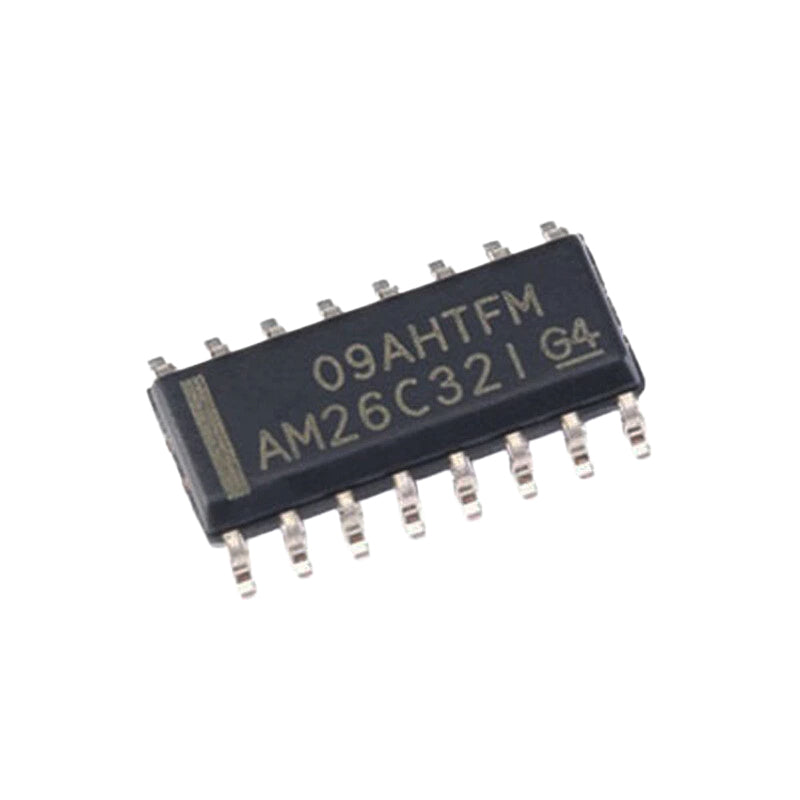

The AM26C32IDR by Texas Instruments is a high-performance, industrial-grade quadruple differential line receiver designed for balanced or unbalanced digital data transmission via RS-422/RS-423 interfaces. Built using BiCMOS technology, it delivers low power consumption (around one-fifth that of the AM26LS32) while maintaining strong AC and DC performance. Features include a common-enable pin (configurable for active-high or active-low), three-state bus-direct outputs, a fail-safe design that forces outputs high when inputs are open, and operation from a single 5 V supply. Ideal for use in industrial automation, automotive systems, smart grid, ATM/cash counters, and motor drives.
| Parameter | Value |
|---|---|
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-16 |
| Series | AM26C32 |
| Function | Receiver |
| Data Rate | 10 Mb/s |
| Number of Receivers | 4 Receivers |
| Supply Voltage – Max | 5.5 V |
| Supply Voltage – Min | 4.5 V |
| Operating Supply Current | 15 mA |
| Minimum Operating Temperature | –40 °C |
| Maximum Operating Temperature | +125 °C |
| Packaging Options | Reel, Cut Tape |
| Brand | Texas Instruments |
| Operating Supply Voltage | 5 V |
| Product | RS-422 Transceivers |
| Product Type | RS-422 Interface IC |
