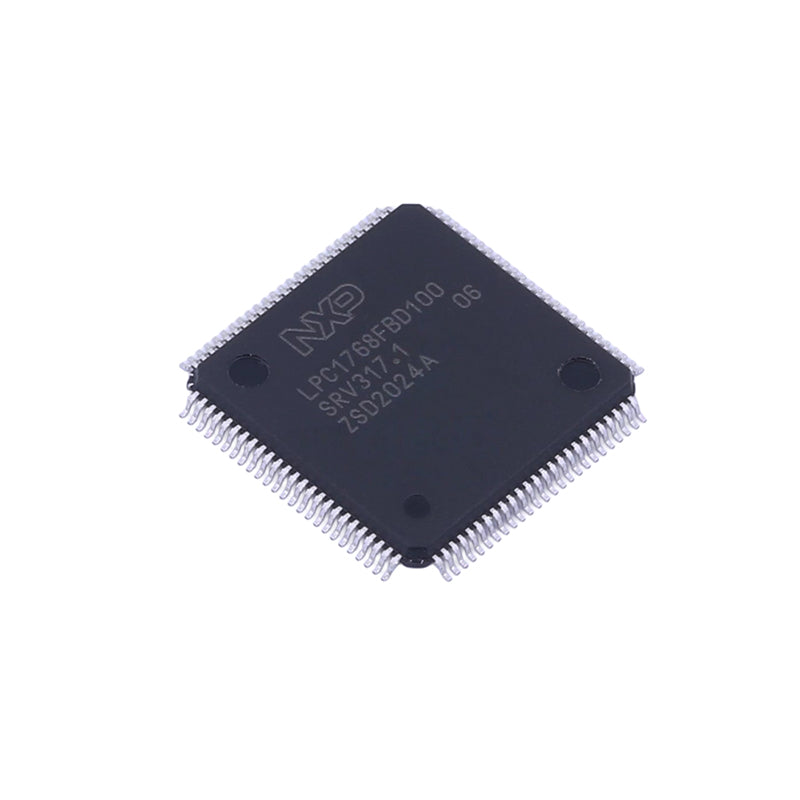

The LPC1768FBD100K is an NXP ARM® Cortex®-M3 microcontroller designed for embedded applications that need high performance with low power. Running up to 100 MHz, it integrates 512 KB Flash, 64 KB SRAM, 10/100 Ethernet MAC, USB 2.0 (Device/Host/OTG), CAN 2.0B, 4× UART, 2× SPI/SSP, I²C, 8-ch 12-bit ADC and 10-bit DAC in a compact LQFP-100 package. Ideal for industrial control, IoT gateways, robotics, and connected devices. Typical operation is at 3.3 V (spec range 2.4–3.6 V) with an extended -40 °C to +85 °C temperature rating.
Parameter |
Value |
Series |
LPC1700 |
Mounting Style |
SMD/SMT |
Core |
ARM Cortex-M3 |
Program Memory Size |
512 kB |
Data Bus Width |
32 bit |
ADC Resolution |
12 bit |
Maximum Clock Frequency |
100 MHz |
Number of I/Os |
70 I/O |
Data RAM Size |
64 kB |
Supply Voltage – Min |
3.3 V |
Supply Voltage – Max |
3.3 V |
Minimum Operating Temperature |
−40 °C |
Maximum Operating Temperature |
+85 °C |
Packaging |
Tray |
Brand |
NXP Semiconductors |
