PIC Development Board

PIC Development Board

SKU:S1005

Low stock

The MICROCHIP PIC Microcontroller Development Board is a versatile platform for prototyping and learning, featuring a PIC16F877A microcontroller, onboard power supply, RS232 support, and an ISP header for seamless development.

Regular price Rs. 680.00
Sale price Rs. 680.00 Regular price Rs. 799.00
Sale Sold out
Tax included. 18% GST
Shipping calculated at checkout.

Socket Type

Have any issues,Β Get support here. Have a bulk requirement, mail us toΒ info@silicontechnolabs.in

Total price: β‚Ή0
View full details

MICROCHIP PIC Microcontroller Development Board - Quick Start for PIC Projects with PIC16F877A

Level up your PIC projects with this awesome PIC development board! Whether you’re just diving into microcontrollers or you're a seasoned tech wizard, this board has everything you need for smooth development and testing. Packed with a high-performance PIC microcontroller, it’s your perfect partner for creating next-gen electronics.

With onboard power supply, serial communication ports for gadgets like sensors, GSM modems, and more, plus essentials like reset switches, user LEDs, and port extensions, this board is designed for maximum flexibility. And when it’s time to load your code, the ISP header makes in-circuit programming super easy.

Need power? Just plug it into the DC jack – the onboard regulator handles anything from 8V to 15V (AC or DC). Whether you're prototyping or building your next big project, this PIC development board is all you need to turn your ideas into reality!

Why Choose This Board?

Whether you’re a student or an engineer, this development board offers the functionality, flexibility, and ease-of-use you need for a quick and effective project start. Get yours today and elevate your microcontroller learning experience!

Parameter Value
Microcontroller PIC16F877A (40-Pin DIP)
Architecture 8-bit PIC Microcontroller
Operating Voltage 5V DC
Input Supply Voltage (VIN) 7V–12V DC (Recommended)
Regulated Output 5V DC
Clock Support Crystal Oscillator Socket (Up to 20 MHz)
Programming Interface ICSP (In-Circuit Serial Programming) Header
Communication Interface TTL UART & RS232 Serial Interface
RS232 Converter Onboard MAX232 or Compatible IC
User LEDs 1 Γ— Onboard Programmable LED
Power LED 1 Γ— Power Status LED
Push Buttons 1 Γ— User Switch, 1 Γ— Reset Switch
Reset Circuit Onboard Reset Circuit
Power Regulation Onboard AC/DC to 5V Voltage Regulator
External Power Header VIN, 5V, GND
GPIO Access All MCU I/O Pins Available on Headers
Analog Inputs Up to 8 ADC Channels (via MCU)
PWM Outputs Up to 2 CCP/PWM Channels
Timers Timer0, Timer1, Timer2
EEPROM 256 Bytes (Internal MCU)
Flash Program Memory 8K Γ— 14 Words
RAM 368 Bytes
Expansion Headers 2.54 mm Female/Pin Headers
Board Type PIC Development Board
PCB High-Quality FR-4 PCB
Mounting Mounting Holes Provided
Applications Embedded Systems, Robotics, Industrial Control, Education, Sensor Interfacing, Automation

Package Includes:

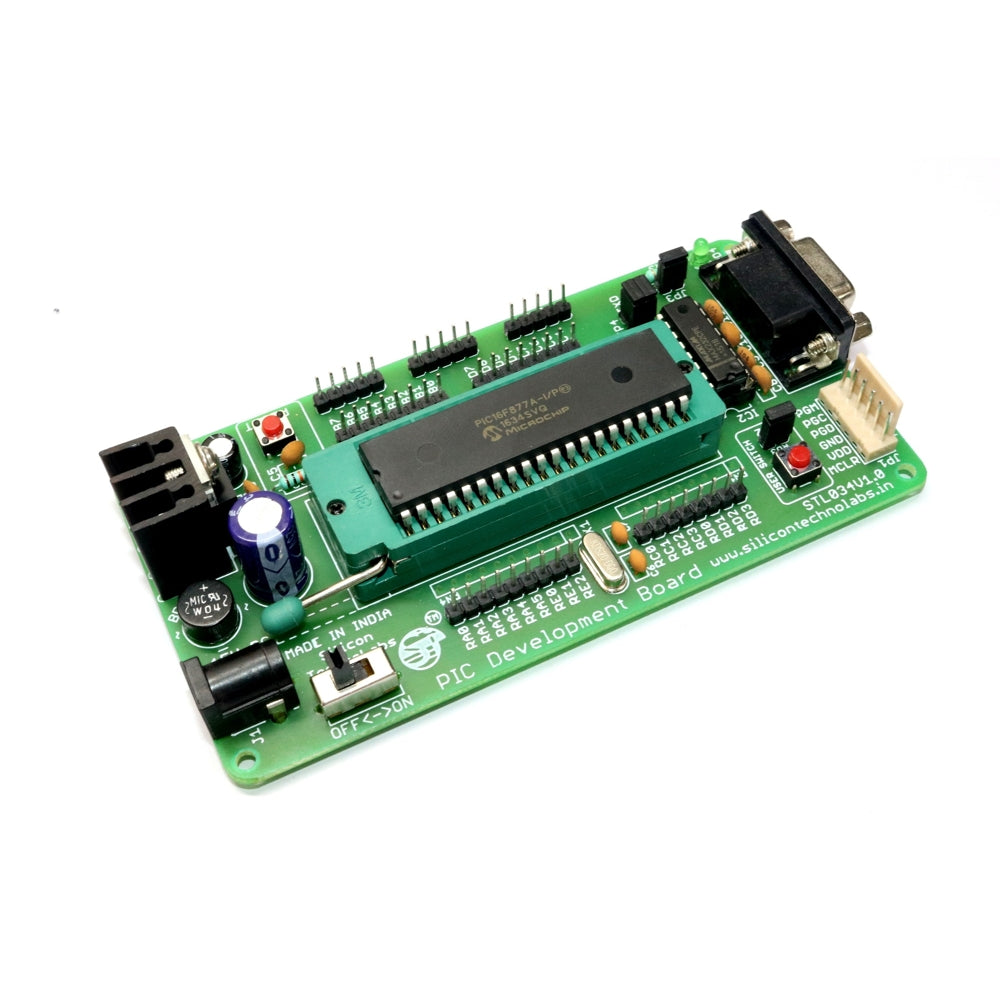

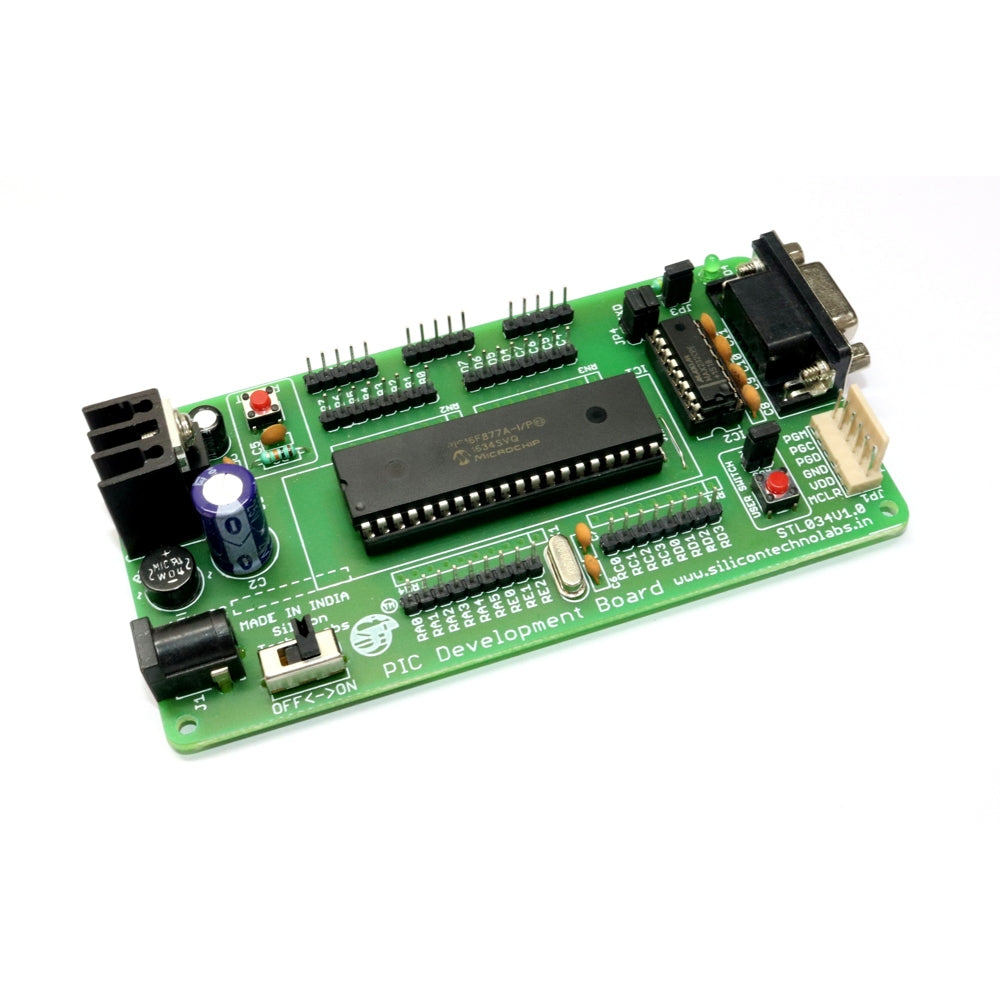

  • PIC Development Board with ZIF or DIP Socket based on your selections
  • PIC16F877A Microcontroller pre-installed
  • MAX232 Chip for seamless RS232 communication

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Parth Patel(Inventor Engineer & Patent Holder)
No Compromise with quality

Nice built quality,orignal Microchip Microcontroller superb working and got the quality what shown in the picture πŸ‘ŒI am buying since from last 7 years with Silicon technolabs through Amazon but from Last 2 years directly from there personal website and Getting more better service.πŸ‘

Specification Details
Supply Voltage Supports a wide input range from 8V to 15V (AC or DC).
User LEDs LEDs for visual feedback and debugging purposes.
User Switch Provides real-time interaction and circuit testing functionality.
AC to DC Conversion Built-in regulator ensures stable DC output from AC input.
5V and 12V Rails Dedicated 5V and 12V outputs for powering external modules and devices.
GPIO Breakout Easy access to GPIO pins for connecting peripherals and components.
RS232 Communication Integrated MAX232 chip enables seamless serial communication.
On/Off Switch Simple power switch for controlling the board’s operation.
ISP Header In-System Programming header for quick and easy programming and debugging.
Country Of Origin: INDIA
