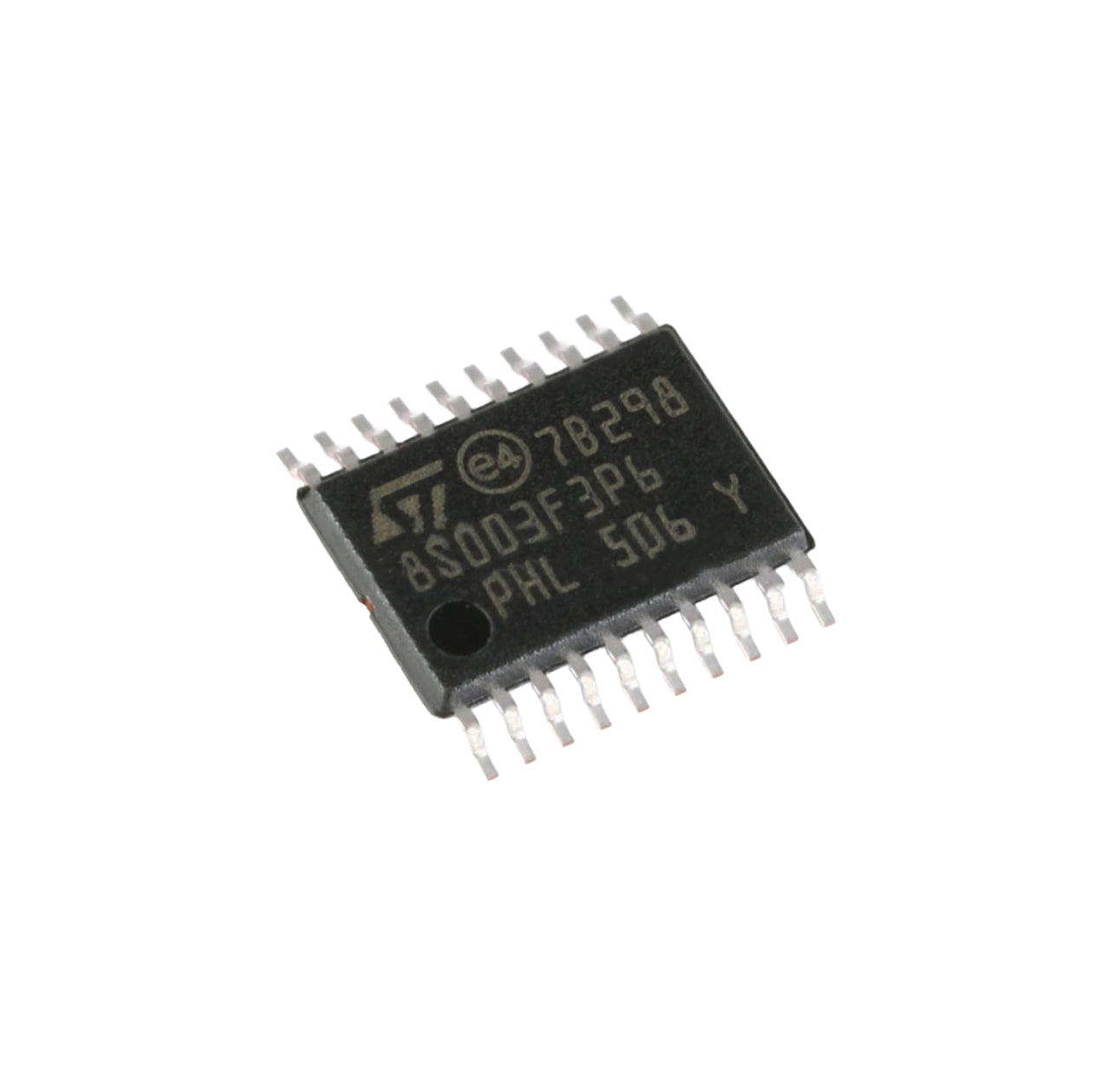

STM8S003F3P6TR - STMicroelectronics STM8S 8-Bit MCU, 8 kB Flash, 128 B EEPROM, 16 MHz - TSSOP-20

STM8S003F3P6TR - STMicroelectronics STM8S 8-Bit MCU, 8 kB Flash, 128 B EEPROM, 16 MHz - TSSOP-20

SKU:S5033

In stock

STM8S003F3P6TR 8 bit MCU - 8 KB Flash, 128 B EEPROM, 1 KB RAM, 16 MHz, 10-bit ADC (5 ch), I2C/SPI/UART, low-power modes, 2.95-5.5 V, -40°C to +85°C.

Regular price Rs. 32.00
Sale price Rs. 32.00 Regular price
Sale Sold out
Price excludes 18% GST
Shipping calculated at checkout.

Have any issues, Get support here. Have a bulk requirement, mail us to info@silicontechnolabs.in

View full details

The STM8S003F3P6TR from STMicroelectronics is a value-line 8-bit microcontroller featuring an efficient STM8 core with 8 KB Flash, 128 B true data EEPROM, 1 KB RAM, and a 10-bit ADC (5 channels)—all in a compact TSSOP-20 package. Running at up to 16 MHz and supporting I2C, SPI, UART/USART, brown-out reset, watchdogs, and multiple low-power modes within a 2.95 V to 5.5 V range, it delivers robust performance, low system cost, and versatile embedded applications support.

Specification Details
Core STM8 (8-bit, Harvard architecture, 3-stage pipeline)
Program Memory Size 8 KB Flash
Data ROM Size (EEPROM) 128 B true EEPROM
RAM Size 1 KB
Maximum Clock Frequency 16 MHz
ADC Resolution 10-bit
Number of ADC Channels 5
Number of I/Os 16 I/O (on TSSOP-20)
Interfaces I2C, SPI, UART/USART, IrDA, LIN (some variants)
Supply Voltage Range Min 2.95 V – Max 5.5 V
Operating Temperature Range –40 °C to +85 °C
Package / Case TSSOP-20 (SMD/SMT)
Mounting Style SMD/SMT
Data Bus Width 8-bit
Series STM8S003F3
Packaging Options Tape & Reel (TR), Cut Tape
Peripherals Brown-out reset, Watchdogs, Low-power modes, SWIM debugger, advanced timers
