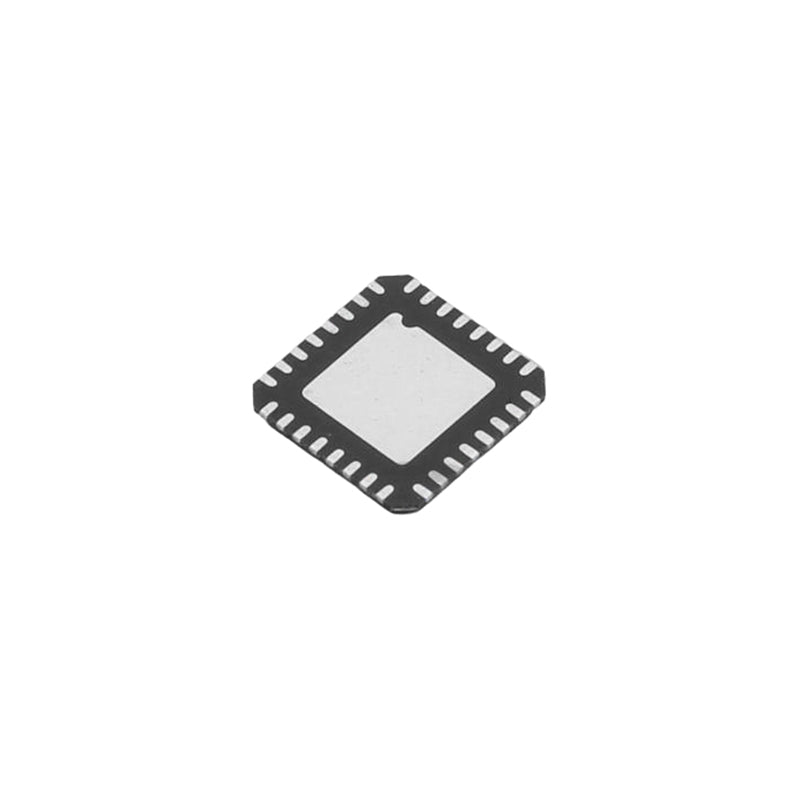

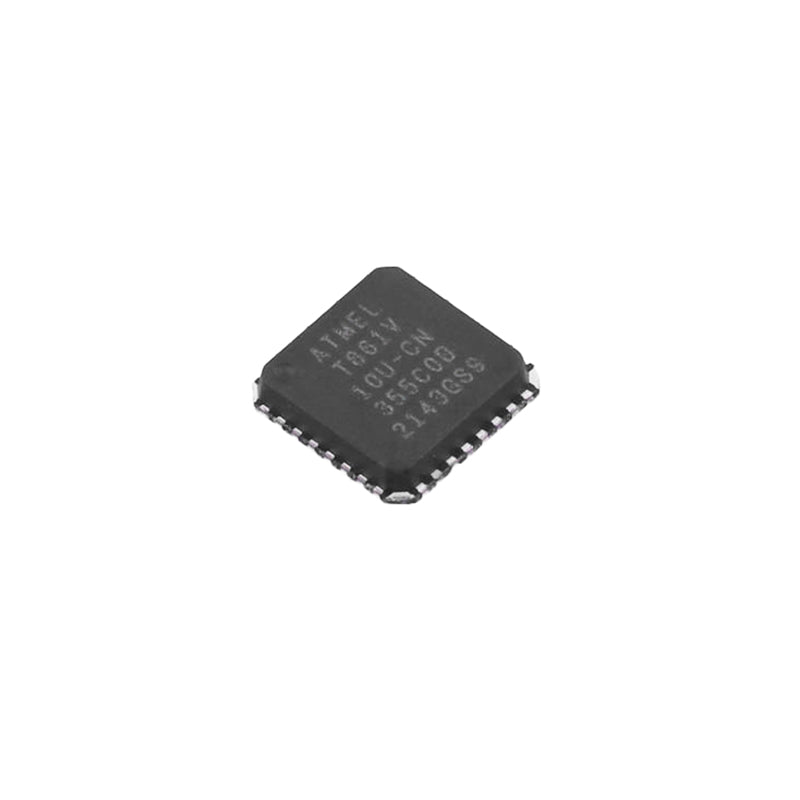

The ATTINY861V-10MU is a versatile and compact 8-bit AVR® microcontroller by Microchip, ideal for embedded and low-power applications. Equipped with 8 KB of ISP Flash memory, 512 B EEPROM, and 512 B SRAM, this MCU offers efficient performance at up to 10 MHz, operating from 1.8 V to 5.5 V. It features 16 general-purpose I/O lines, an 11-channel 10-bit ADC, multiple communication interfaces (SPI, TWI/I²C, USI), double timers, and support for debugWIRE. Built for industrial-grade reliability, it runs from −40 °C to +85 °C and comes in a compact 32-pad VQFN (MLF-32) package.
| Specification | Details |
|---|---|
| Core | AVR® |
| Program Memory Size | 8 kB (Flash) |
| Data RAM Size | 512 B (SRAM) |
| Data ROM Size | 512 B (EEPROM) |
| Data Bus Width | 8-bit |
| Package / Case | 32-pad VQFN/MLF-32 (5×5 mm), tray |
| Mounting Style | SMD / SMT |
| Max Clock Frequency | 10 MHz |
| ADC Resolution | 10-bit, 11 channels |
| Number of I/Os | 16 |
| Interface Type | SPI, TWI (I²C), USI |
| Timers / Counters | 2 timers |
| Supply Voltage | 1.8 V – 5.5 V |
| Operating Temperature | −40 °C – +85 °C |
| Processor Series | tinyAVR (ATtinyx61) |
| Moisture Sensitive | Yes |
| Height | ~0.88 mm |
| Length | ~5 mm |
| Series | ATtinyx61 |
| Packaging | Tray |
| Brand | Microchip Technology |
