12V SPDT Sugar Cube Relay 7A 5-Pin Through Hole (JQC3F-C-S-DC12V)

12V SPDT Sugar Cube Relay 7A 5-Pin Through Hole (JQC3F-C-S-DC12V)

SKU:S500264

In stock

12V DC SPDT power relay with 7A switching capacity, ideal for industrial automation, Arduino projects, home automation, and power control circuits.

Regular price Rs. 13.00
Sale price Rs. 13.00 Regular price Rs. 16.00
Sale Sold out
Tax included. 18% GST
Shipping calculated at checkout.

Have any issues, Get support here. Have a bulk requirement, mail us to info@silicontechnolabs.in

Total price: ₹0
View full details

The JQC3F-C-S-DC12V is a high-quality 12V DC electromagnetic power relay designed for reliable switching of AC and DC loads. Featuring an SPDT (1 Form C) contact configuration, this relay can switch up to 7A loads, making it ideal for industrial automation, home appliances, power control circuits, Arduino projects, and embedded systems.

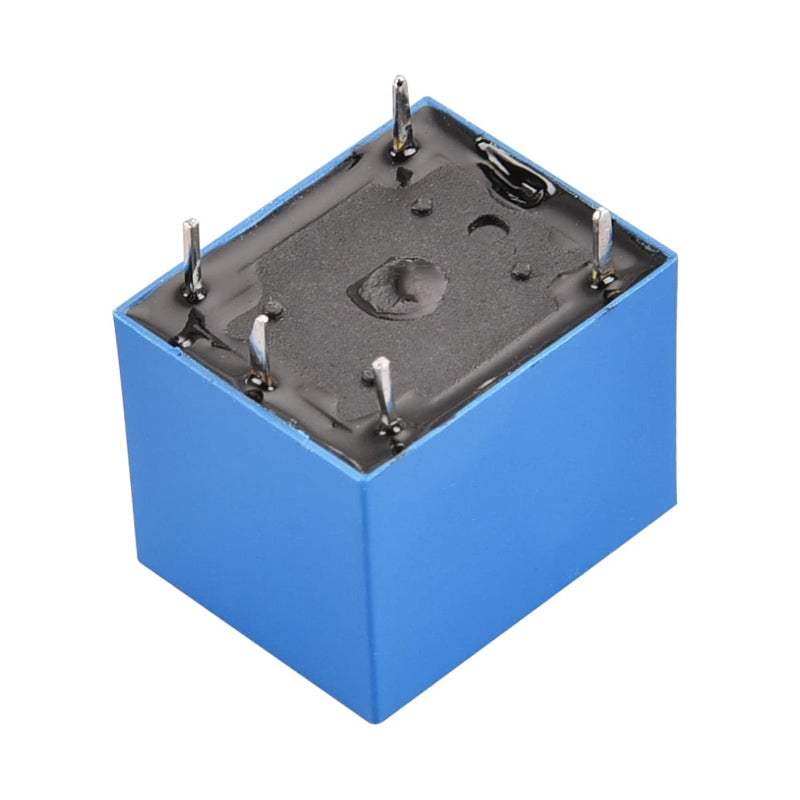

Its compact through-hole package ensures easy PCB mounting while providing excellent electrical isolation between the control and load circuits.

Features

  • 12V DC Coil Voltage
  • SPDT (1 Form C) Contact
  • Up to 7A Switching Capacity
  • Through-Hole Package
  • ROHS Compliant
Parameter Value
Model JQC3F-C-S-DC12V
Relay Type Electromagnetic PCB Relay
Coil Voltage 12V DC
Contact Form SPDT (1 Form C)

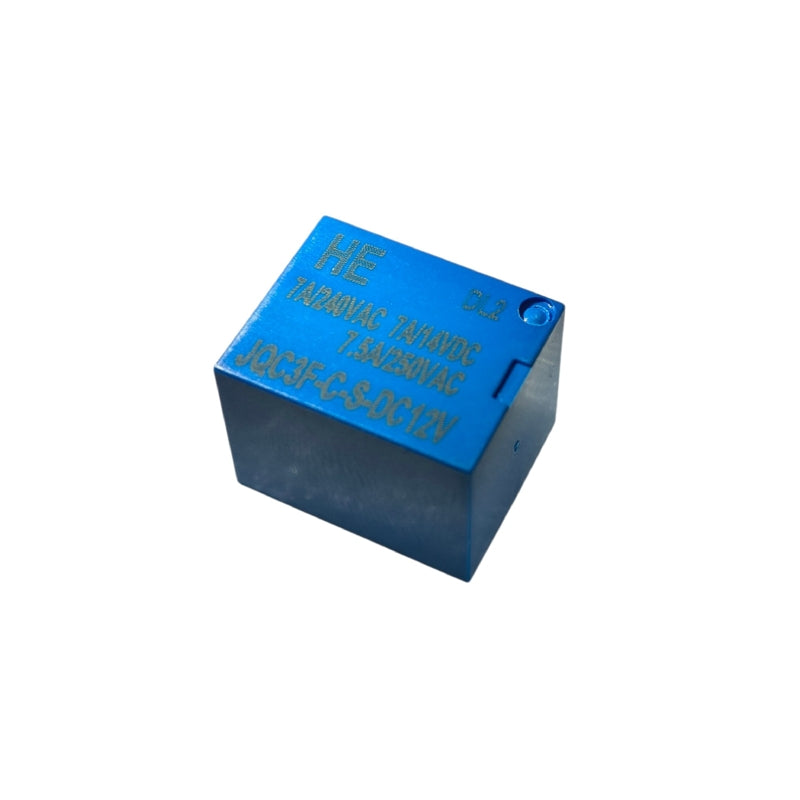

Contact Rating 7A @ 240VAC, 7A @ 14VDC, 7.5A @ 250VAC
Coil Power 0.36W
Coil Resistance 400Ω ±10%
Pick-up Voltage ≤9V (75% of rated voltage)
Release Voltage ≥0.6V (5% of rated voltage)
Operate Time ≤10ms
Release Time ≤5ms
Mounting Through Hole PCB
Weight Approx. 10g
Operating Temperature -40°C to +85°C
Contact Life 100,000 electrical operations
Mechanical Life 10,000,000 operations
RoHS Yes

Q: What is the coil voltage of the JQC3F-C-S-DC12V relay?
A: The relay operates with a 12V DC coil.

Q: What is the maximum switching current?

A: It can switch loads up to 7A.

Q: Is this relay suitable for Arduino projects?
A: Yes. It is commonly used with Arduino, ESP32, STM32, Raspberry Pi, and other microcontroller-based projects using a suitable driver circuit.

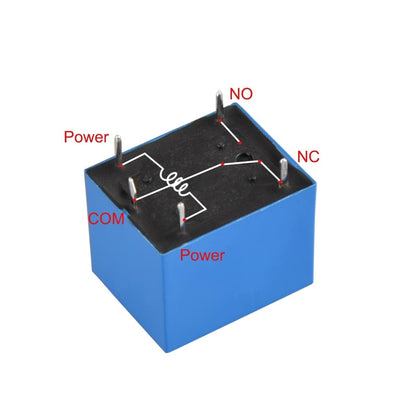

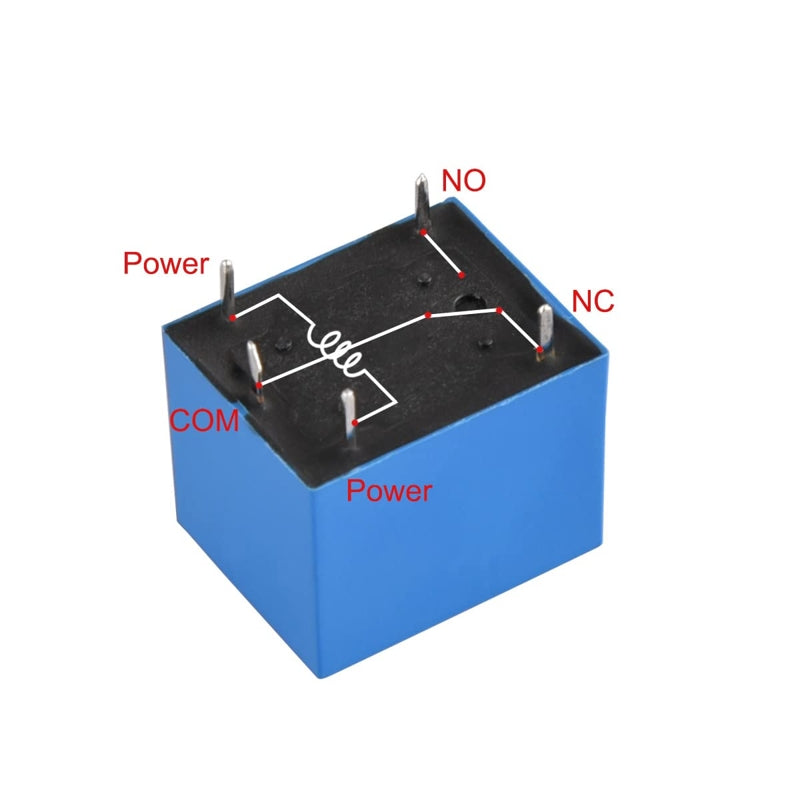

Q: How many pins does the relay have?
A: The relay features a 5-pin through-hole package.

Q: What contact configuration does this relay use?
A: It uses an SPDT (Single Pole Double Throw / 1 Form C) contact arrangement.

Q: Where is this relay commonly used?
A: It is widely used in industrial automation, home automation, motor control, lighting control, power supplies, and embedded electronics.

File Name Action
JQC3FC-Datasheet(PDF) Download
