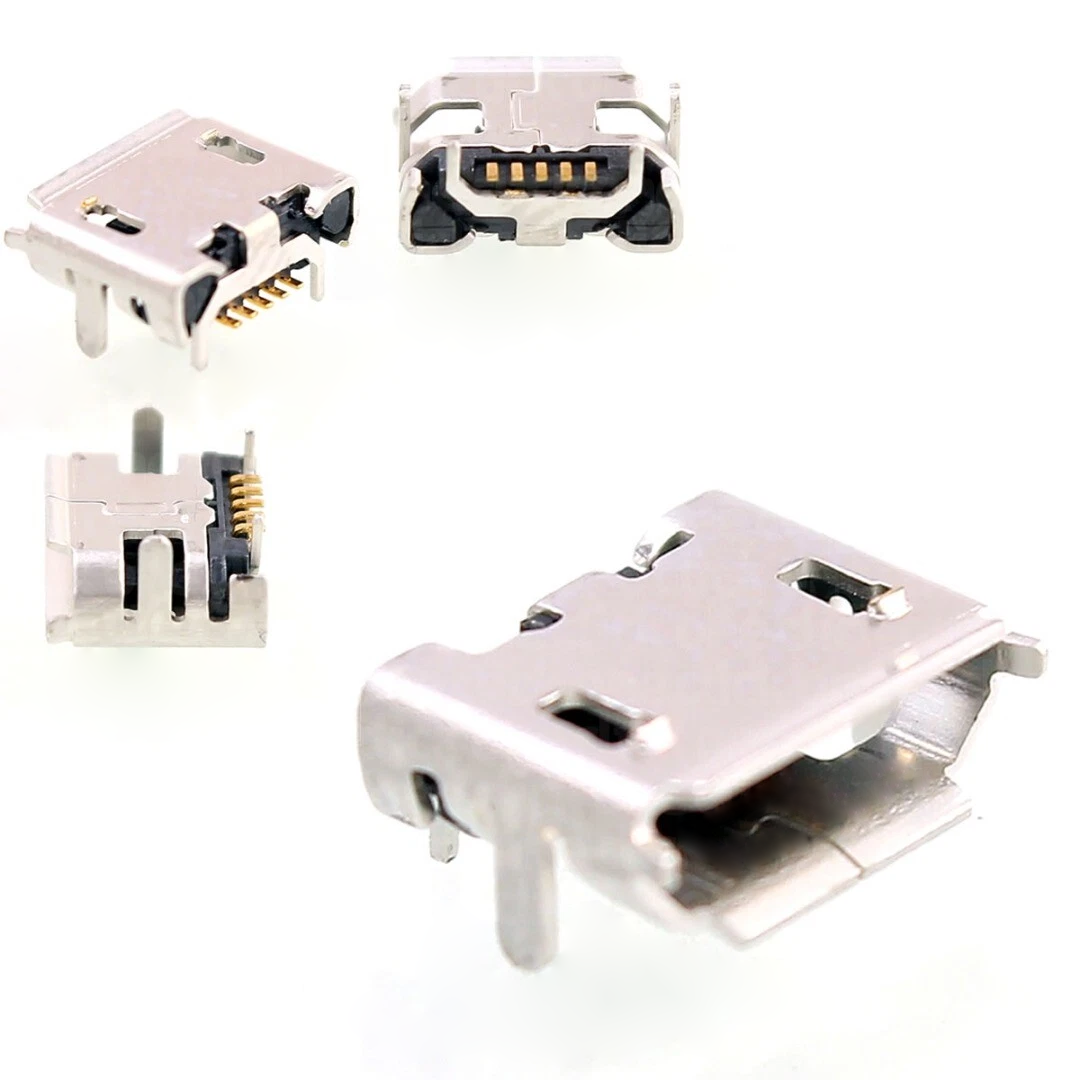

High-quality 5-Pin Micro USB Type-B Female Connector SMD mount. Ideal for PCB projects, DIY electronics, USB charging ports, and repairs.
Material:
- Housing: High temperature thermoplastic with glass fiber, UL94V-0 rated
- Contact: Copper alloy, thickness = 0.15 mm
- Shell: Copper alloy or stainless steel (SUS), thickness = 0.30 mm
Products Specifications:
| Type | Details |
|---|---|
| Package | SMD |
| Protocol Standard | USB 2.0 |
| Number of Contacts | 5P |
| Connector Type | Micro-B |
| Current Rating | 1,5Pin - 1.8A; 2,3,4Pin - 1A |
| Contact Resistance | 30 mΩ Max |
| Dielectric Withstanding Voltage | 100V AC for 1 minute |
| Insulation Resistance | 100 MΩ Min |
| Total Mating Force | 3.57 Kgf Max |
| Total Unmating Force | 1.0 Kgf Min |
| Operating Temperature Range | −30°C to +80°C |
Package Includes:
- 1 x Micro USB 2.0 Type B Female Connector 5 Pin
| File Name | Action |
|---|---|
| Micro USB 2.0 Type B Female Connector 5 Pin | Download |
