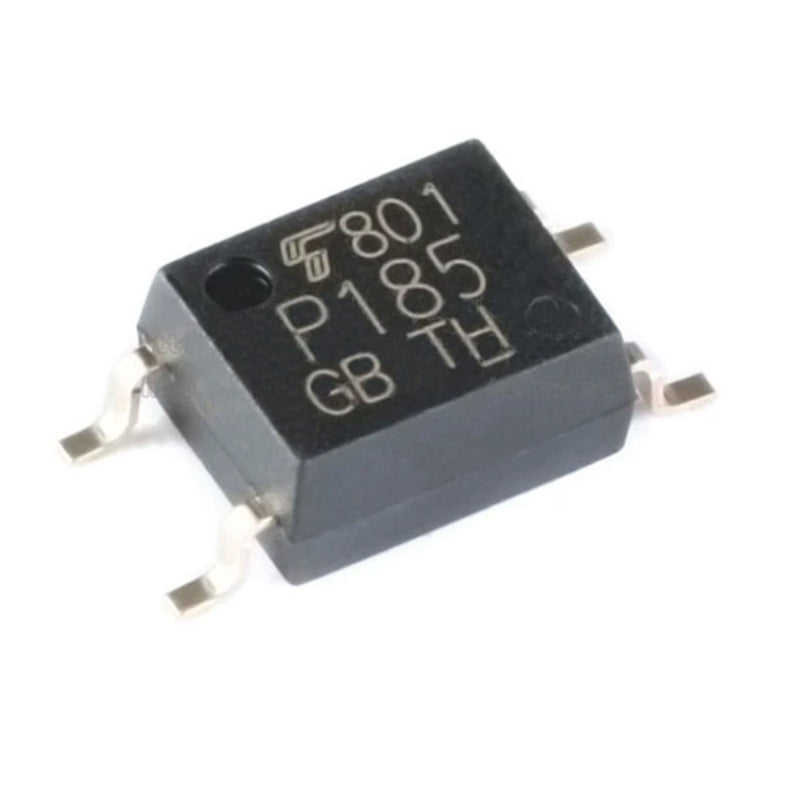

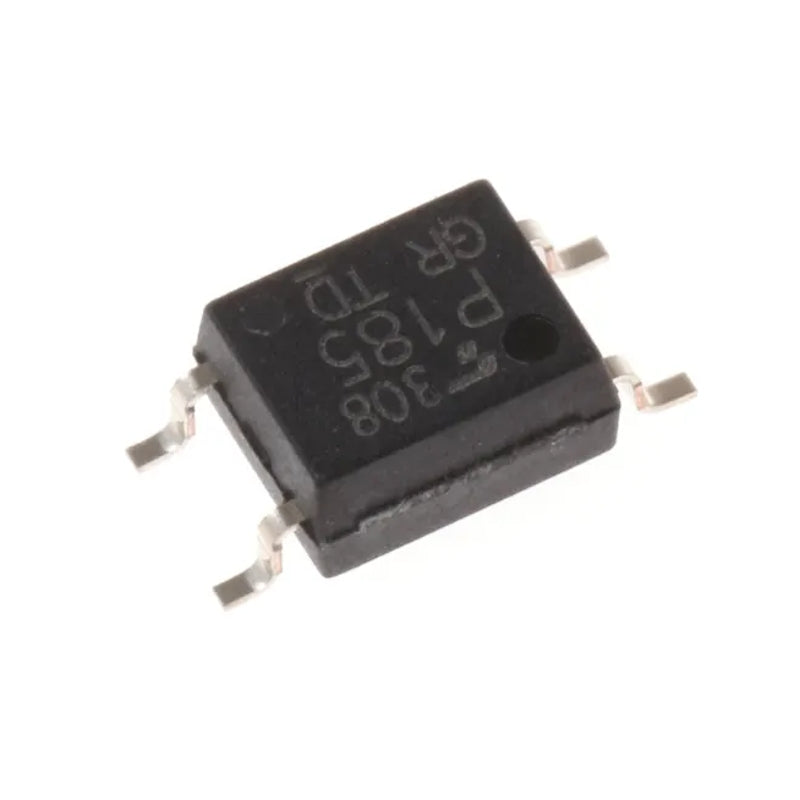

Toshiba TLP185(V4GRTR,SE) phototransistor output optocoupler with 3750 Vrms isolation, SO-6 SMD package, for PLCs, industrial control, power supplies, and signal isolation applications.
Regular price
Rs. 38.00
Sale price
Rs. 38.00
Regular price
Unit price/ per
Sale
Sold out
Tax included.
18% GST Shipping calculated at checkout.

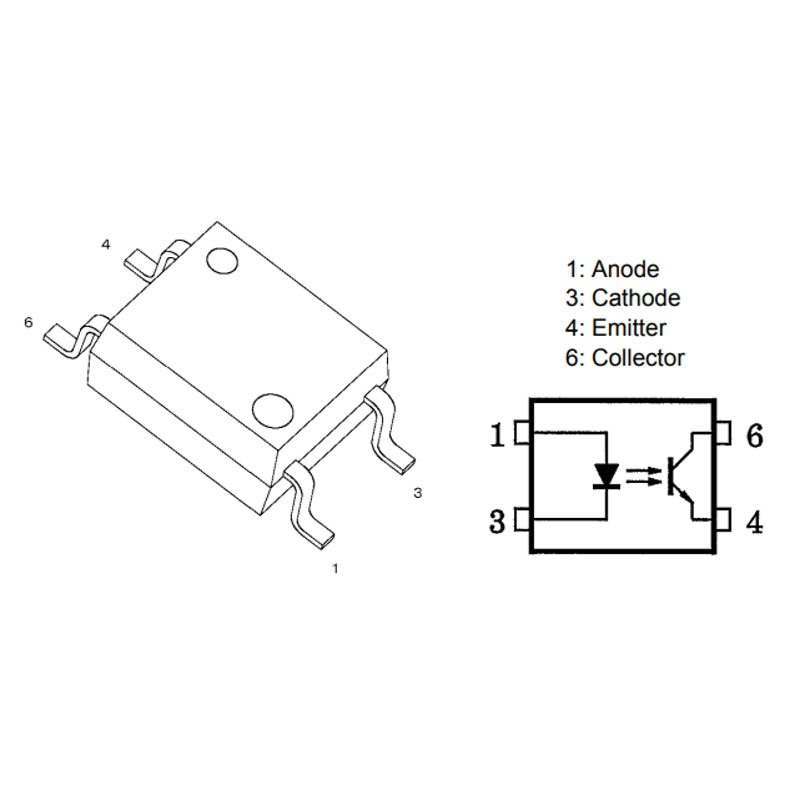

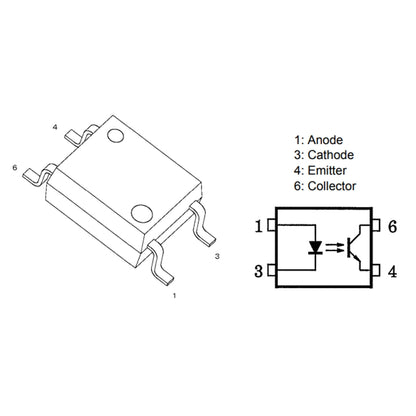

The TLP185(V4GRTR,SE is a compact phototransistor output optocoupler from Toshiba, to provide reliable electrical isolation between input and output circuits. It has a gallium arsenide infrared LED optically coupled to a high-performance phototransistor, ensuring safe signal transmission while protecting sensitive electronic circuits from voltage spikes and electrical noise.
SO-6 surface-mount package, the TLP185(V4GRTR,SE is for high-density PCB designs. It offers an isolation voltage of up to 3750 Vrms, supports a collector-emitter voltage of 80 V, and delivers stable switching performance for industrial applications.
The device is widely used in programmable logic controllers (PLCs), switching power supplies (SMPS), industrial automation equipment, communication interfaces, I/O interface boards, AC adapters, and microcontroller-based control systems where galvanic isolation is essential.
Parameter
Value
Toshiba
Product Category:
Transistor Output Optocouplers
RoHS:
Yes
SMD/SMT
SO-6
1 Channel
3750 Vrms
50 %
600 %
10 mA
1.25 V
300 mV
2 us
3 us
5 V
200 mW
- 55 C
+ 110 C
Reel, Cut Tape
Brand:
Toshiba
Configuration:
1 Channel
Q: Is this an original Toshiba TLP185(V4GRTR,SE?
A: Yes, we supply genuine Toshiba components sourced from trusted suppliers.
Q: Can I use this optocoupler with 3.3V or 5V microcontrollers?
A: Yes, it is compatible with both 3.3V and 5V logic circuits when used with appropriate external components.
Q: What applications is this optocoupler suitable for?
A: It is ideal for PLCs, SMPS, industrial automation, signal isolation, and microcontroller interface circuits.
Q: Does it provide electrical isolation?
A: Yes, it offers up to 3750 Vrms isolation between the input and output circuits.
Q: Do you provide a GST invoice?
A: Yes, a GST invoice is provided with every order.
Q: Is bulk pricing available?
A: Yes, we offer special pricing for bulk quantities and OEM orders. Please contact us for a quotation.
