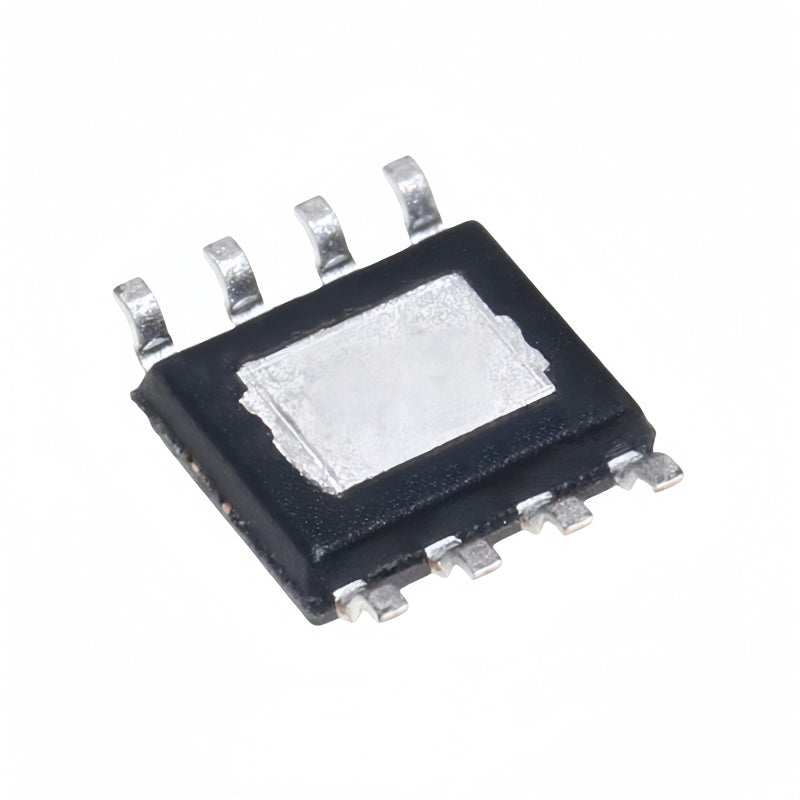

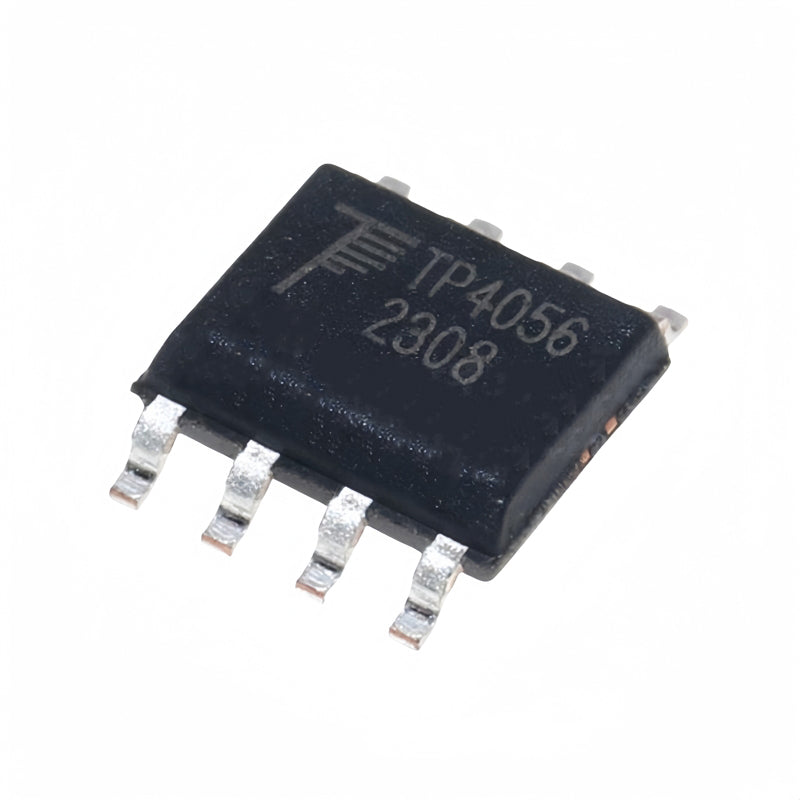

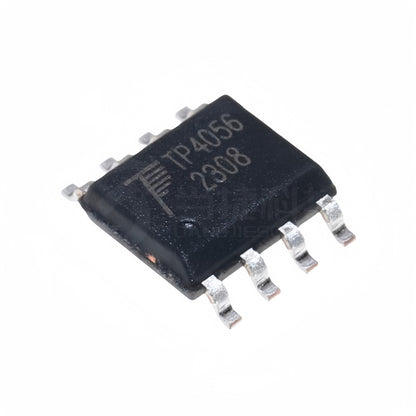

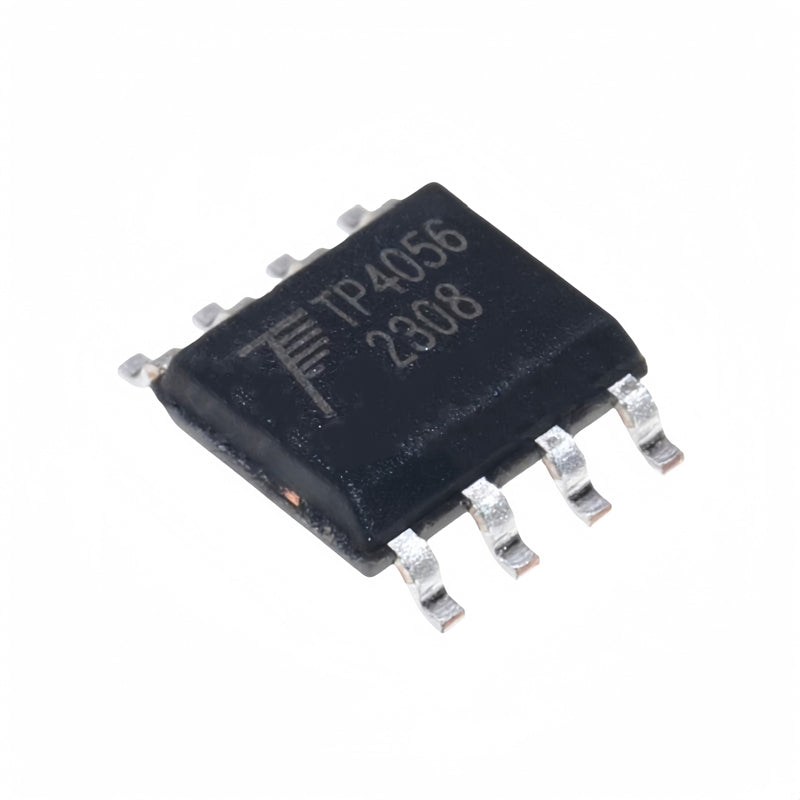

TP4056 1A Linear Lithium-Ion Battery Charger IC SOP-8

TP4056 1A Linear Lithium-Ion Battery Charger IC SOP-8

Manufacturer : TPOWER

Mfr. Part#: TP4056

Package: SOP8

Key Attributes:

Description: TP4056 single-cell Li-Ion & LiPo battery charging IC with programmable charging current up to 1A, CC/CV charging, thermal protection, and automatic recharge in SOP-8 package.

Datasheet: TP4056 - Datasheet(PDF)

View full details

Products Specifications

The TP4056 is a complete constant-current/constant-voltage (CC/CV) linear battery charging IC designed for charging a single-cell Lithium-Ion or Lithium Polymer battery. It requires very few external components, Best for portable devices, DIY electronics, embedded systems, battery-powered products, and IoT applications.

The charging current can be programmed using a single external resistor, and the IC automatically terminates charging when the battery reaches full charge. It also includes thermal regulation, under-voltage lockout, and charge status indication.

Features

  • Compatible with TP4056 charging IC
  • Charges single-cell Li-Ion and LiPo batteries
  • Constant Current / Constant Voltage (CC/CV) charging
  • Programmable charging current up to 1A
  • 4.2V regulated charging voltage
  • No external MOSFET or blocking diode required
  • Automatic recharge function
  • Thermal regulation prevents overheating
  • Charge status outputs
  • SOP-8 package
Parameter Value
Part Number TP4056
Package SOP-8
Battery Type Single Cell Li-Ion / LiPo
Input Voltage 4V to 8V
Charging Voltage 4.2V ±1%
Charging Method Constant Current / Constant Voltage
Maximum Charging Current Up to 1A (Programmable)
Thermal Protection Yes
Automatic Recharge Yes
Charge Status Output Yes
RoHS Yes

Compliance & Export Codes

Type Details
RoHS
rohs icon
ECCN EAR99
CNHTS 8542399000
USHTS 8542390001
TARIC 8542399000
CAHTS 8542390000
BRHTS 85423999
INHTS 85423900
MXHTS 8542.39.99
In-Stock: 45
45 Available for Immediate Shipping
Packaging
Unit Price
Rs. 12.00
