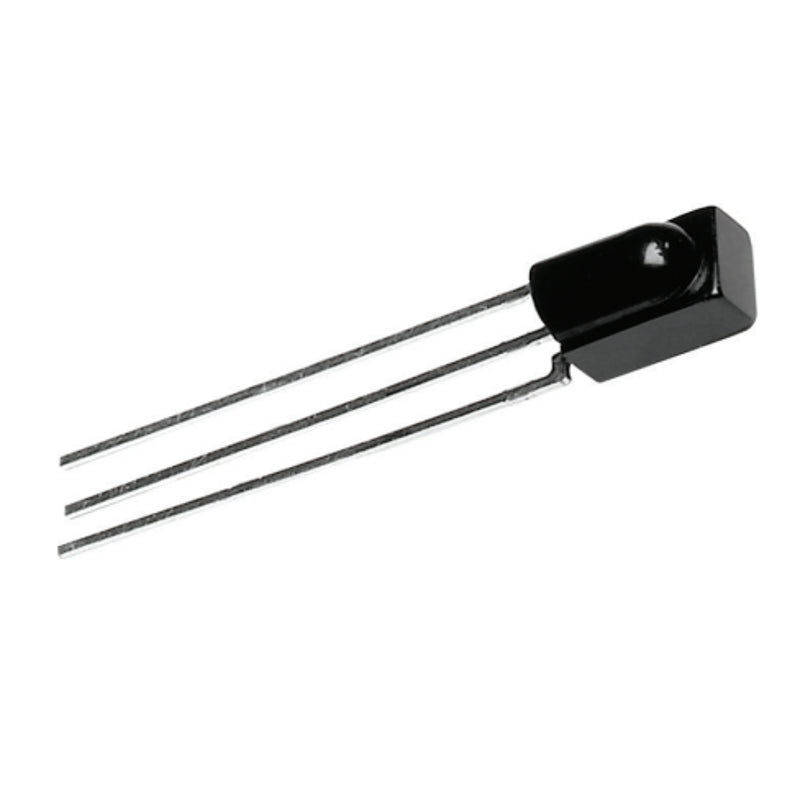

The TSOP38238 is a compact IR receiver module designed for remote control and infrared communication applications. It operates at a carrier frequency of 38kHz and features high sensitivity, low power consumption, and excellent noise immunity. Ideal for Arduino, Raspberry Pi, home automation, robotics, and embedded projects.
Features
38kHz IR receiver module
High sensitivity and noise suppression
Low power consumption
Suitable for remote control applications
Easy through-hole mounting
Parameter
Value
Vishay
Product Category:
Infrared Receivers
RoHS:
Yes
Through Hole
38 kHz
45 m
45 deg
45 deg
0.8 ms
0.8 ms
100 mV
5 mA
2.5 V to 5.5 V
350 uA
10 mW
- 25 C
+ 85 C
Side Looker
- This product includes a 3-month warranty covering manufacturing defects only.
- Damage resulting from improper use is not covered under this warranty.
- Shipping costs for sending or receiving the product for warranty repair or replacement are not included in the warranty coverage.
Q: What is the TSOP38238 used for?
A: It is used to receive 38kHz infrared signals from remote controls and IR transmitters.
Q: Is the TSOP38238 compatible with Arduino?
A: Yes, it works with Arduino, ESP32, Raspberry Pi, and other microcontrollers.
Q: What frequency does the TSOP38238 support?
A: It is optimized for 38kHz infrared carrier frequency.
Q: Can it be used for remote control projects?
A: Yes, it is commonly used in TV remote, home automation, and IR communication projects.
Q: What operating voltage does the TSOP38238 require?
A: It operates from approximately 2.5V to 5.5V.
