Description:

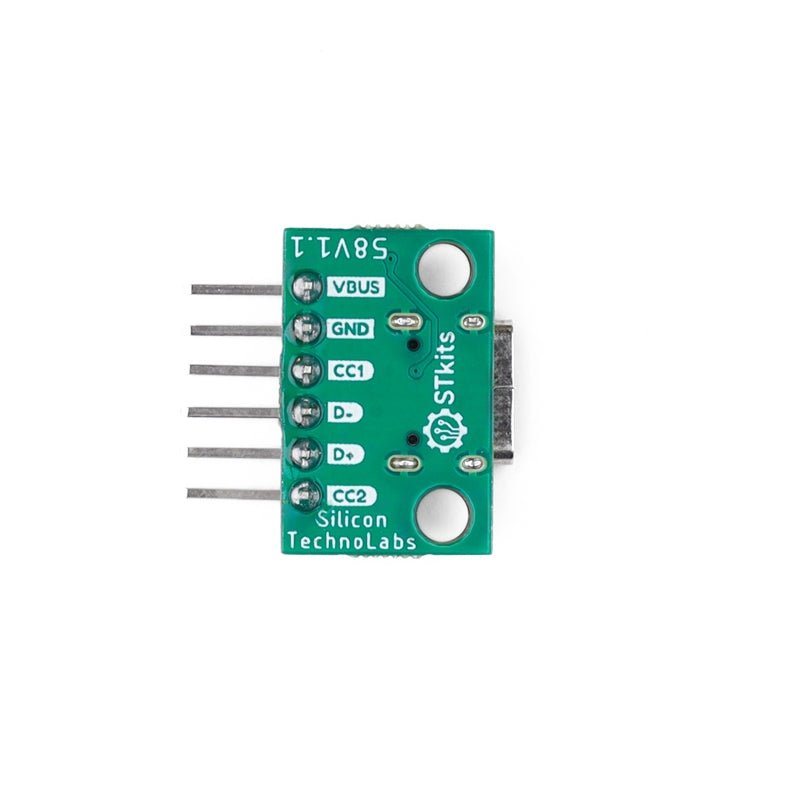

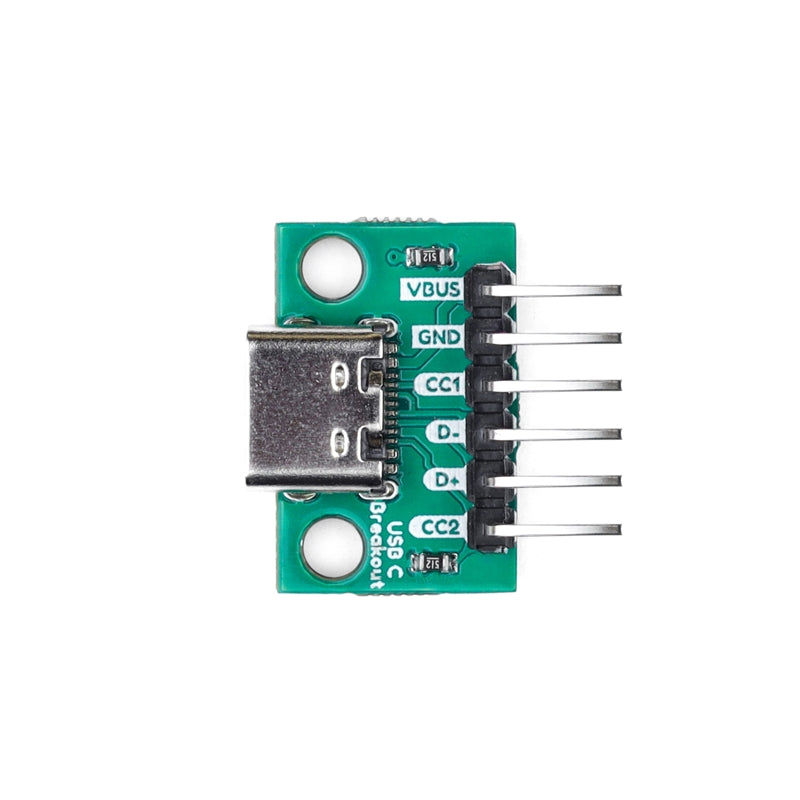

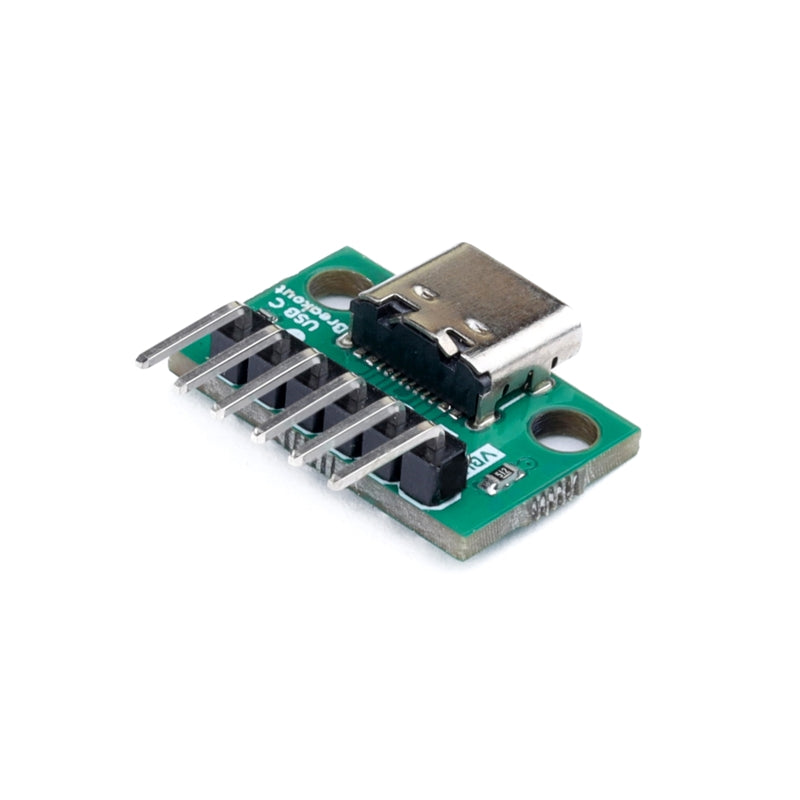

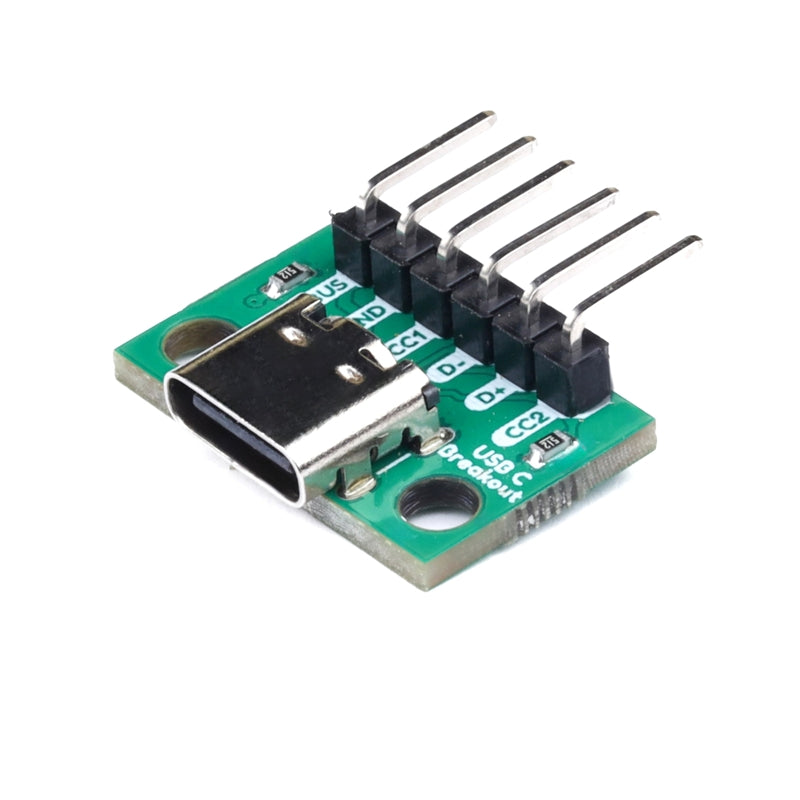

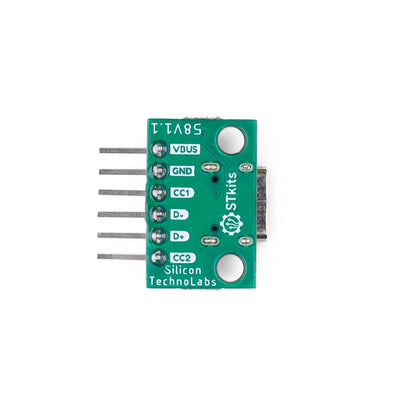

The Silicon Technolabs USB Type-C Breakout Board makes it easy to integrate a USB-C connector into your electronic projects without the difficulty of soldering fine-pitch SMD pins. Designed for prototyping, development, and DIY applications, this compact breakout board brings all essential USB-C signals to a standard 0.1" (2.54mm) header for convenient access.
The board breaks out the USB Type-C connector's VBUS, GND, CC1, CC2, D+, and D− pins, enabling both power and data connectivity. It supports a nominal current of 1.5A and can deliver up to 3A, depending on the connected USB-C source device.
Features:
- USB Type-C female connector
- Breaks out VBUS, GND, CC1, CC2, D+, and D− pins
- Standard 0.1" (2.54mm) header spacing
- Supports USB power delivery up to 3A (source dependent)
- Reversible USB-C connector for easy cable insertion
- Ideal for prototyping, embedded systems, IoT, and DIY electronics projects
- Dimensions: 22.1mm x 13mm x 4.9mm (0.87in x 0.51in x 0.19in)
- Weight: 1.4g
Applications:
- USB-powered projects
- Embedded system development
- Electronics prototyping
- DIY USB-C power and data interfaces
- Educational and learning projects
Q: What is this USB Type-C Breakout Board used for?
A: It provides easy access to USB-C power and data pins for prototyping and development.
Q: Which pins are available on the board?
A: VBUS, GND, CC1, CC2, D+, and D− are broken out to header pins.
Q: Does it support power and data transfer?
A: Yes, it supports both USB power and data connections.
Q: Is SMD soldering required?
A: No, all connections are available through a pre-soldered right-angle header.
Q: What is the maximum current supported?
A: The board supports up to 3A current, depending on the connected USB-C source.
