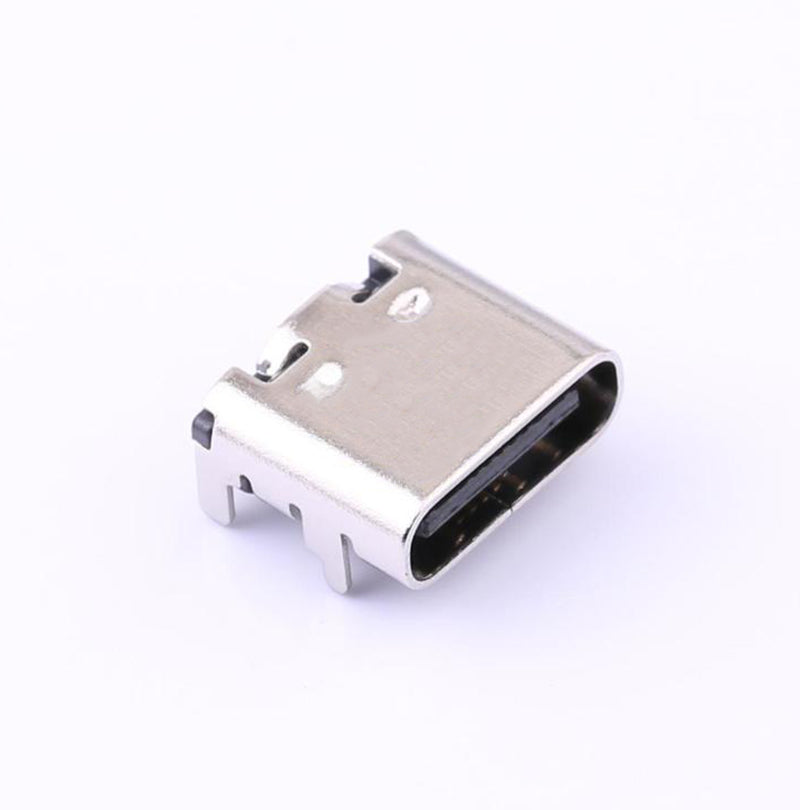

The USB Type-C Female Connector is a compact and reliable surface-mount receptacle designed for modern electronic devices and embedded systems. Featuring a reversible USB-C interface, it provides convenient power and data connections while ensuring durability and stable performance. Its low-profile design makes it ideal for space-constrained PCB applications such as development boards, IoT devices, chargers, power supplies, and consumer electronics.
Technical Specifications
- Connector Type: USB Type-C Female Receptacle
- Mounting Type: Surface Mount (SMT)
- Pin Count: 16 Pins
- Contact Material: Copper Alloy (Gold-Plated Contacts)
- Housing Material: High-Temperature Thermoplastic
- PCB Thickness: 1.0–1.2 mm Recommended
- Compliance: RoHS, Halogen-Free
| Parameter |
Description |
| Manufacturer |
Hanbo Electronic |
| Packaging |
SMD |
| Protocol Standard |
USB 3.1 |
| Current Rating-Power |
3A |
| Number of Ports |
1 |
| Number of Contacts |
16P |
| Connector Type |
Type-C |
| Voltage Rating |
20V |
| Operating Temperature |
-25℃~+85℃ |
| Mounting Type |
Surface Mount, Right Angle |
| Gender |
Female |
Q: What is this connector used for?
A: It is used for USB charging and data connections in electronic devices and PCB projects.
Q: Is this a right-angle PCB mount connector?
A: Yes, it has a right-angle design for PCB mounting and compact layouts.
Q: Does it support reversible USB Type-C connections?
A: Yes, the USB Type-C plug can be inserted in either direction.
Q: Can I use it with Arduino and ESP32 boards?
A: Yes, it is suitable for Arduino, ESP32, STM32, and other embedded projects.
Q: Does it support charging and data transfer?
A: Yes, it supports USB charging and USB 3.1 data transfer.
